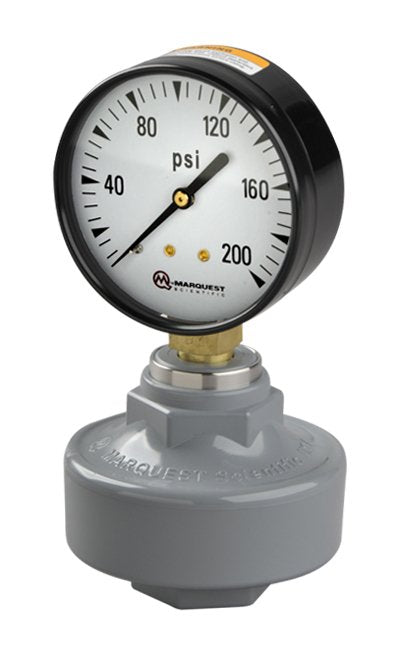

The CPVC Gauge Isolator with Viton Diaphragm and Standard Economy Gauge is a robust solution for protecting and isolating pressure sensing instruments. Featuring an impermeable Viton diaphragm, this isolator ensures accurate pressure transmission with a low profile design that eliminates dead volume. The stainless steel reinforced instrument connection and reinforced process connection meet ANSI Schedule 120 standards, providing durability and reliability. With features like a self-venting internal shape, integral wrench provisions for maintenance, and a replaceable diaphragm, this isolator offers ease of use and long-term performance.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.

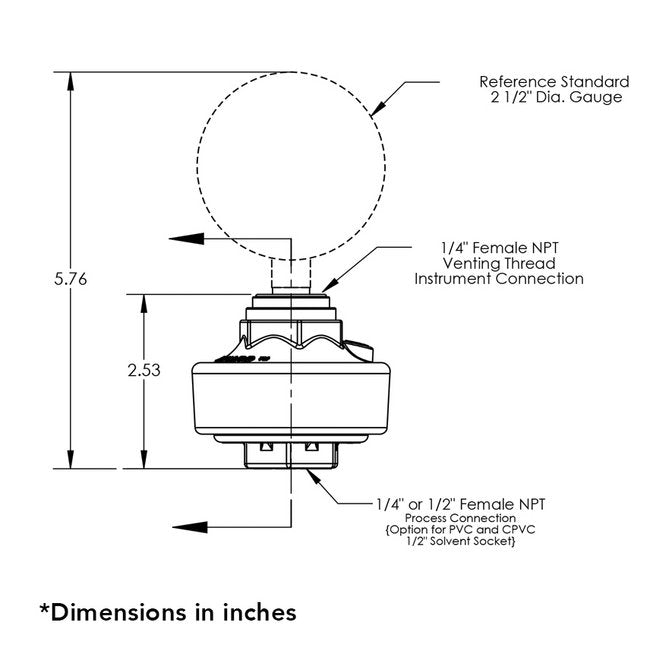

Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-200 PSI, Brass, Blk Pntd Steel
Specifications List Price
157.95 USD
Specifications Materials
CPVC, Viton Diaphragm
