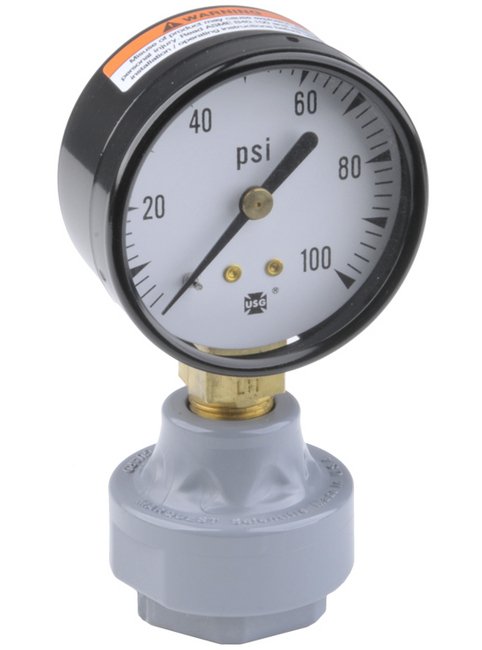

CPVC Mini Tuff Guard Isolator with 2" Economy Gauge
CPVC Mini Tuff Guard Isolator with 2" Economy Gauge
SKU:GAU-25c83f
Enhance system reliability with the CPVC Mini Tuff Guard Isolator. Protects instruments, features self-venting design and compact size.
Regular price
$84.95
Regular price
Sale price
$84.95
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The CPVC Mini Tuff Guard Isolator with a 2" Economy Gauge provides a durable and compact solution for protecting process fluids and instruments, enhancing system reliability by preventing instrument failures. With an injection-molded CPVC construction and a composite PTFE/FKM diaphragm, this isolator boasts a self-venting design and integral wrench provisions for easy maintenance. The instrument connection features a 1/4" female NPT thread with a Viton O-Ring seal for secure installation, while the gauge includes a black painted steel case with brass internals for accurate pressure readings. Meeting FDA, USDA, and USP standards, this isolator ensures quality and compliance in industrial applications.
Product Specifications
Specifications Inlet Connection
1/4" Fem NPT
Specifications Installed Gauge
0-200 PSI, Brass, Blk Pntd Steel
Specifications List Price
84.95 USD
Specifications Materials
CPVC, PTFE/FKM Diaph
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
