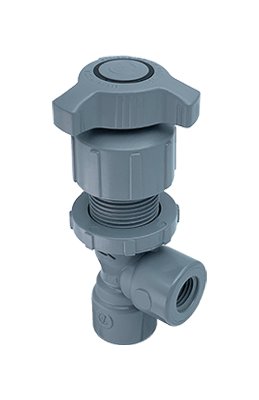

CPVC Needle Valve - 1/4" x 1/4" Female NPT Angle, Throttle Master Series
CPVC Needle Valve - 1/4" x 1/4" Female NPT Angle, Throttle Master Series
SKU:PLA-cba82d
Precision control CPVC Needle Valve for corrosive fluids. 150 PSI, 90° Angle Pattern. Chemical resistant and panel-mountable.
Regular price
$74.95
Regular price
Sale price
$74.95
Unit price
per
Initiate Order
CPVC Needle Valve - 1/4" x 1/4" Female NPT Angle, Throttle Master Series
$74.95
Quantity: 1
Claim Your Seller Account
CPVC Needle Valve - 1/4" x 1/4" Female NPT Angle, Throttle Master Series
$74.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/4" x 1/4" Female NPT Angle Needle Valve in CPVC construction from the Throttle Master Needle Valves series offers precise flow control for corrosive and high-purity fluids. With a 90° angle pattern, this valve ensures fine adjustment with a maximum pressure rating of 150 PSI. Featuring a bubble-tight, low torque shut-off design and PTFE sealing, it guarantees long-term performance and 20% finer metering control. This valve is chemical-resistant, high purity, and panel-mountable without fasteners, suitable for panel thicknesses ranging from 1/16" to 1/2".
Product Specifications
Features 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.CPVC is NSF Std 14 & 61 Compliant
Materials Of Construction 0
Body CPVC: Chlorinated Polyvinyl Chloride Seal Virgin PTFE Choice of three sizes 1/4" x 1/4" FNPT
Specifications Cv Factor
0.426
Specifications Inlet X Outlet
1/4" Female NPT
Specifications List Price
74.95 USD
Specifications Materials
CPVC, PTFE Seal
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle, 90° Pattern
