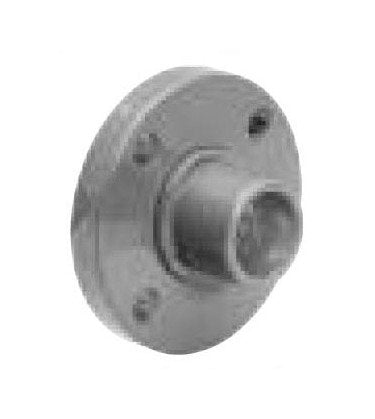

CPVC Schedule 80 Flange 8 inches

Name: CPVC Schedule 80 Flange 8 inches
Brand: Caylor Industrial Sales, Inc.
SKU: FIT-939b52
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-939b52

Premium CPVC Schedule 80 Flange, 8 inches, Spigot Connection, NSF Listed for Water Safety

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CPVC Schedule 80 Flange is a high-quality fitting designed for demanding applications. With a Spigot connection type and Loose Ring design, this 8-inch flange ensures secure and leak-free installations. Made from PVC Type 1, Cell Classification 12454-B, it meets ASTM D-1784 and ASTM D-2467 standards. The Viton O-Rings guarantee durability and reliability. NSF listed for potable water services, this flange is ideal for both institutional and consumer use.

Product Specifications

Connection 0

FIPT Female Iron Pipe Thread MIPT Male Iron Pipe Thread Slip Solvent Cement Socket SP Spigot TBE Threaded Both Ends TOE Threaded One End Insert Barbed

Specifications Carton Qty

Specifications Connection Type

Spigot

Specifications Size

8 inches

Specifications Type

Loose Ring

Standards And Specifications Schedule 80 0

ASTM D-1784 - Rigid Poly (Vinyl Chloride) (PVC) Compounds and Chlorinated Poly (Vinyl Chloride) (CPVC) Compounds. ASTM D-2464 - Threaded Poly (Vinyl Chloride) (PVC) Plastic Pipe Fittings, Schedule 80. ASTM D-2467 - Socket Type Poly (Vinyl Chloride) (PVC) Plastic Pipe Fittings, Schedule 80. ASTM F-1970 - Standard Specification for Special Engineered Fittings, Appurtenances or Valves for use in Poly (Vinyl Chloride) (PVC) or Chlorinated Poly (Vinyl Chloride) (CPVC) Systems. MATERIAL - LASCO Schedule 80 Fittings are produced from PVC Type 1, Cell Classification 12454-B. O-Rings are produced from a fluorocarbon elastomer (VITON). LISTINGS - NSF (National Sanitation Foundation) for potable water services.

CPVC Schedule 80 Flange 8 inches
