CPVC True Union Ball Valve for NAOCl Applications, Flanged End Connections - TBZ Series
CPVC True Union Ball Valve for NAOCl Applications, Flanged End Connections - TBZ Series
SKU:TRU-786a6a
Reliable CPVC True Union Ball Valve for NAOCl apps, with flanged end connections & FPM o-rings. Ideal for industrial use.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
CPVC True Union Ball Valve for NAOCl Applications, Flanged End Connections - TBZ Series
$189.99
Quantity: 1
Claim Your Seller Account
CPVC True Union Ball Valve for NAOCl Applications, Flanged End Connections - TBZ Series
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

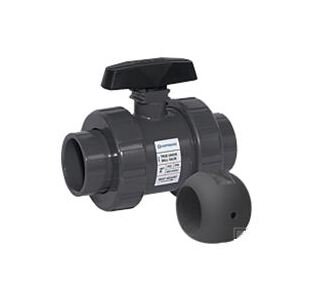

The CPVC True Union Ball Valve from the TBZ Series is designed for sodium hypochlorite (NAOCl) applications, featuring a drilled ball for venting and a black handle for easy identification. With FPM o-rings, this valve ensures reliable sealing. Rated @ 250PSI (1/4 in. - 2 in.), 235PSI (2-1/2 to 4 in.), and 150PSI (6 in. flanged), it offers exceptional performance. Available in sizes up to 2 in. with socket and threaded end connections, this valve is ideal for industrial and institutional settings.
Product Specifications
Dimensional Attributes A
12.30 in
Dimensional Attributes B
4.52 in
Dimensional Attributes C
8.56 in
Dimensional Attributes D1
6.50 in
Dimensional Attributes D2
6.50 in
Dimensional Attributes F
17.22 in
Dimensional Attributes H
7.37 in
Specifications Body Material
CPVC
Specifications Cv Coefficient
600.0
Specifications End Connection
Flanged
Specifications Flow Configuration
Bi-directional
Specifications Seals
FPM
Specifications Series
TBZ
Specifications Size
4"
Specifications Weight
28.50 lb
