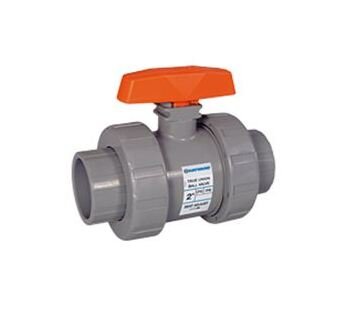

CPVC True Union Ball Valve with FPM O-Rings - 1/2" Flanged End

Name: CPVC True Union Ball Valve with FPM O-Rings - 1/2" Flanged End
Brand: Hayward Flow Control
SKU: TRU-f19d20
Price: 39.99 USD
Availability: OutOfStock

SKU:TRU-f19d20

High-quality CPVC True Union Ball Valve with FPM O-rings and Flanged End Connections, ideal for industrial flow control.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

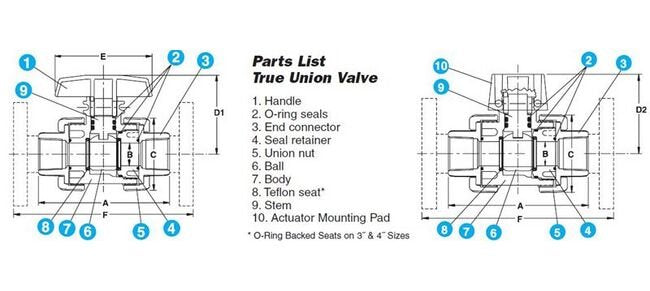

The CPVC True Union Ball Valve in our TB Series is a superior choice for precise flow control in industrial settings. Constructed from durable CPVC with FPM O-rings, this valve ensures reliable performance. With a bi-directional flow configuration, flanged end connections, and a Cv coefficient of 8.0, it offers optimal control in systems up to 250psi. Measuring A: 4.63 in, H: 2.82 in, B: 0.50 in, C: 2.25 in, D1: 3.00 in, D2: 2.63 in, F: 6.83 in, this valve guarantees a perfect fit for your applications.

Product Specifications

Dimensional Attributes A

4.63 in | 117.60 mm

Dimensional Attributes B

0.50 in | 12.70 mm

Dimensional Attributes C

2.25 in | 57.15 mm

Dimensional Attributes D1

3.00 in | 76.20 mm

Dimensional Attributes D2

2.63 in | 66.80 mm

Dimensional Attributes F

6.83 in | 173.48 mm

Dimensional Attributes H

2.82 in | 71.63 mm

Specifications Body Material

CPVC

Specifications Cv Coefficient

8.0

Specifications End Connection

Flanged

Specifications Flow Configuration

Bi-directional

Specifications Seals

FPM

Specifications Series

Specifications Size

1/2"

Specifications Weight

1.00 lb | 0.45 kg

CPVC True Union Ball Valve with FPM O-Rings - 1/2" Flanged End
