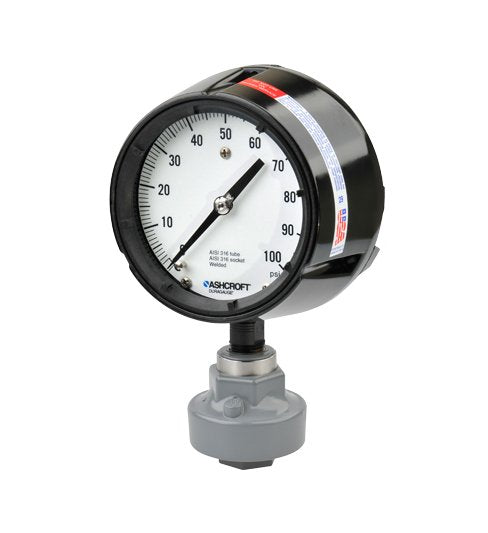

CPVC Tuff Guard Gauge Isolator with Viton Diaphragm & 4.5" Ashcroft Duragauge

Name: CPVC Tuff Guard Gauge Isolator with Viton Diaphragm & 4.5" Ashcroft Duragauge
Brand: Marquest Scientific, Inc.
SKU: GAU-3dfc1b
Price: 661.95 USD
Availability: OutOfStock

SKU:GAU-3dfc1b

Enhance pressure measurement accuracy with the CPVC Tuff Guard Gauge Isolator & Ashcroft Duragauge assembly.

$661.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CPVC Tuff Guard Gauge Isolator with Viton Diaphragm ensures accurate pressure transmission with a convoluted diaphragm design. It features a stainless steel-reinforced instrument connection, compressive spoke ribs for stress transfer, and ANSI Schedule 120 wall thickness. The sturdy construction is 'Unbreakable!' with field-serviceable integral wrench provisions. The 4.5" Ashcroft Duragauge boasts a patented Duratube™ for longevity, burn-resistant phenol turret case, and PTFE-coated stainless steel rotary movement for corrosion resistance. This assembly is glycerin-filled, assembled, tested, and calibrated for reliability.

Product Specifications

Specifications Inlet Connection

1/4" Female NPT

Specifications List Price

661.95 USD

Specifications Materials

CPVC, Viton Diaphragm

Specifications Pressure Range

0-300 PSI

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

CPVC Tuff Guard Gauge Isolator with Viton Diaphragm & 4.5" Ashcroft Duragauge
