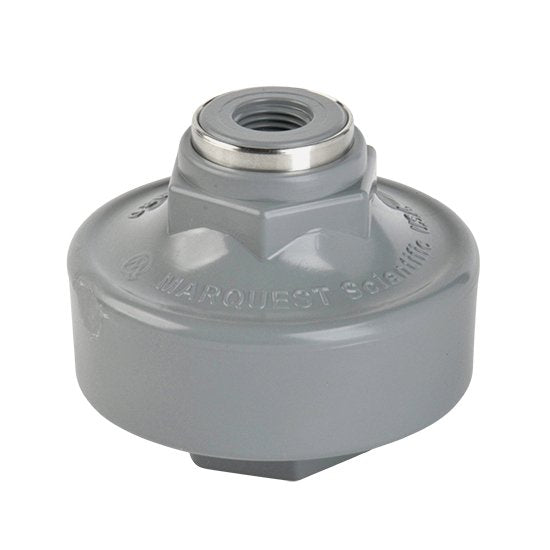

CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Inlet with Modified PTFE Diaphragm

Name: CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Inlet with Modified PTFE Diaphragm
Brand: Marquest Scientific, Inc.
SKU: GAU-0a569a
Price: 108.95 USD
Availability: OutOfStock

SKU:GAU-0a569a

Protect your instruments with CPVC Tuff Guard Isolator featuring Modified PTFE Diaphragm for accurate pressure transmission.

$108.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

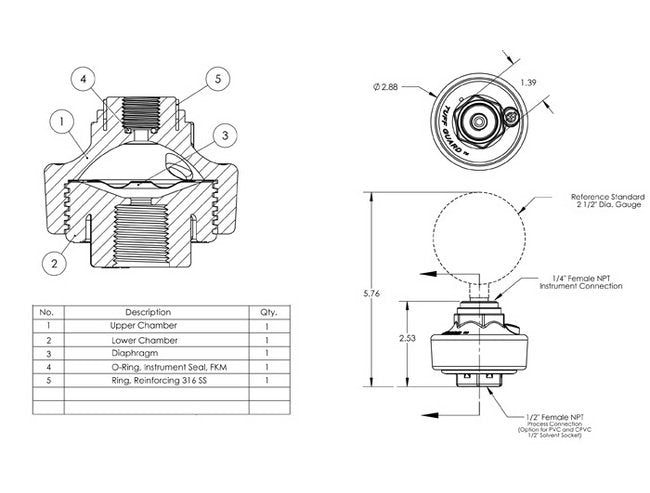

The CPVC Tuff Guard Isolator with a Modified PTFE Diaphragm ensures precise pressure transmission and protection for pressure sensing instruments. Constructed with CPVC material meeting FDA, USDA, and USP standards, it features a convoluted diaphragm for accurate pressure transfer and a stainless steel reinforced instrument connection. This 'Unbreakable' isolator is designed with reinforced process connections, integral wrench provisions for maintenance, and a low-profile design minimizing dead volume. With a 3-year warranty, it offers reliability and durability for various industrial applications.

Product Specifications

Specifications Instrument X Process Conn

1/4" Vent x 1/2" Female NPT

Specifications List Price

108.95 USD

Specifications Materials

CPVC, PTFE Diaphragm

Specifications Max Psi

250 PSI

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Inlet with Modified PTFE Diaphragm
