CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Socket with Viton Diaphragm
CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Socket with Viton Diaphragm
SKU:GAU-0c5ef2

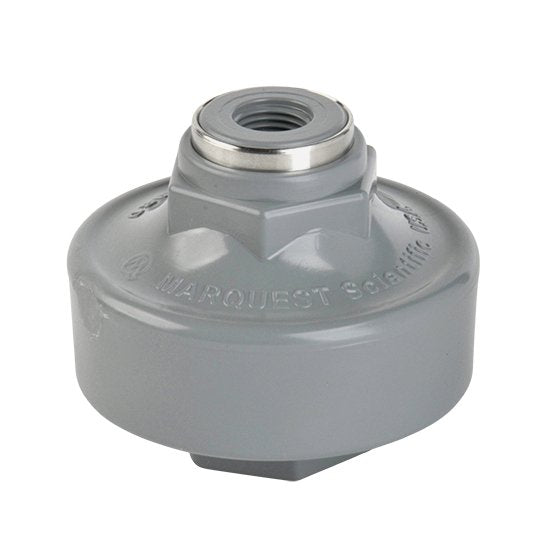

Protect and isolate pressure sensing instruments with the CPVC Tuff Guard Isolator featuring Viton diaphragm and stainless steel reinforcement.
Regular price
$111.95
Regular price
Sale price
$111.95
Unit price
per
Initiate Order
CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Socket with Viton Diaphragm
$111.95
Quantity: 1
Claim Your Seller Account
CPVC Tuff Guard Isolator 1/4" Vent x 1/2" Socket with Viton Diaphragm
$111.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

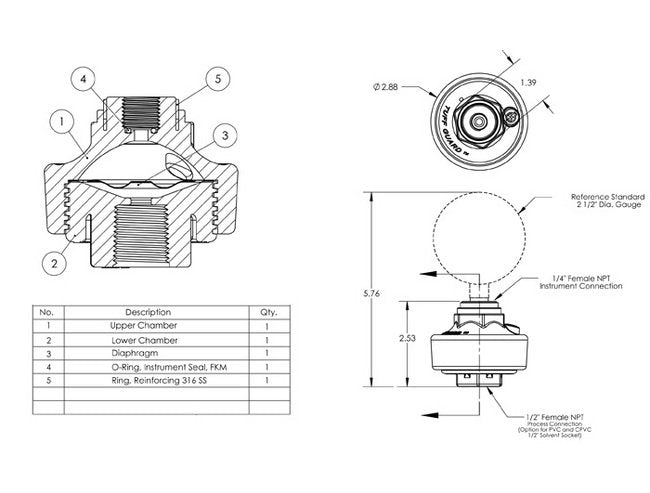

The CPVC Tuff Guard Isolator offers superior protection and isolation for pressure sensing instruments. Featuring a Viton diaphragm and stainless steel reinforced instrument connection, this isolator ensures accurate pressure transmission with a lower spring rate. The CPVC material meets FDA, USDA, and USDA standards, making it ideal for various applications. With a reinforced process connection, integral wrench provisions for field service, and a replaceable diaphragm, this isolator guarantees durability and ease of maintenance. The self-venting internal shape and low-profile design eliminate dead volume, while the fill/bleed port provision allows for easy filling. Backed by a 3-year product warranty, this isolator is a reliable choice for demanding environments.
Product Specifications
Specifications Instrument X Process Conn
1/4" Vent x 1/2" Socket
Specifications List Price
111.95 USD
Specifications Materials
CPVC, Viton Diaphragm
Specifications Max Psi
250 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
