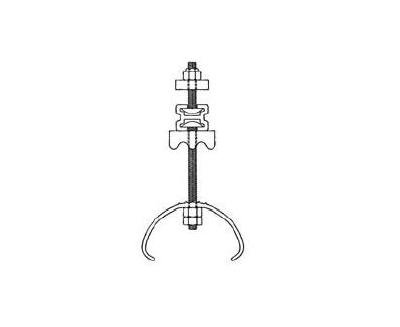

Crane Control End Clamp for Series 200 I Beam Festoon Systems
Crane Control End Clamp for Series 200 I Beam Festoon Systems
SKU:CRA-f15422
Ensure seamless cable management with the Crane Control End Clamp for Series 200 I Beam Festoon Systems.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Crane Control End Clamp for Series 200 I Beam Festoon Systems
$34.99
Quantity: 1
Claim Your Seller Account
Crane Control End Clamp for Series 200 I Beam Festoon Systems
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

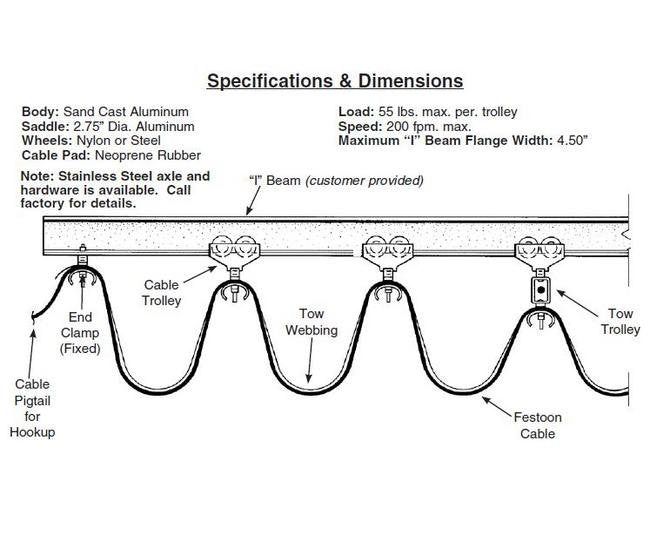

The Crane Control End Clamp is an essential component in the Series 200 I Beam Festoon System, designed for seamless cable management in crane operations. Constructed with durable Sand Cast Aluminum and featuring a Nylon wheel, this clamp ensures stability and smooth cable movement. With a load capacity of 55 lb and a maximum speed of 200 fpm, it offers reliable performance in demanding industrial environments. The Neoprene Rubber cable pad protects cables while the stainless steel axle and hardware option enhance durability. Compliant with industry standards, this clamp is a must-have for efficient crane control systems.
Product Specifications
Specifications Body Type
Sand Cast Aluminum
Specifications Cable Pad
Neoprene Rubber
Specifications Load
55 lb
Specifications Maximum I Beam Flange Width
4.50 in
Specifications Saddle Diameter
2.75 in
Specifications Speed
200 fpm
Specifications Weight
0.75 lb
Specifications Wheel Material
Nylon
