The Critical Process Disposable Media Filter Capsules offer a complete range of filtration solutions designed for small flow applications. Engineered for cost-effectiveness, these capsules feature pleated and depth media options in four specialized grades for general, food & beverage, electronic, and pharmaceutical applications. Each capsule is meticulously designed to maximize filter media utilization, reducing filtration costs and eliminating the need for expensive metallic housings. With a Certificate of Quality Assurance included, these capsules ensure optimal filtration efficiency with a focus on quality, traceability, and validation.
Product Specifications
Construction Materials Filtration Media
Polypropylene 85%
Construction Materials Filtration Media Support Material
Polypropylene
Construction Materials Grade
Food & Beverage
Construction Materials Housing
Polypropylene
Construction Materials Note
All materials of construction are FDA accepted. Final assemblies have been validated to pass USP class 6 Toxicology extractable tests, oxidizable substances for plastics, endotoxin level and other quality tests.
Construction Materials Sealing Method
Heat - Fused
Construction Materials Support Components Material
Polypropylene
Filtration Media 0
Flow Rate Polypropylene - MBGDMB Melt blown capsules are manufactured by a continuous spun bonding technology that assures a consistent product. 100% all polypropylene construction gives wide chemical compatibility and extremely low extractables. These capsules offer exceptional value in both removal efficiency and dirt holding capacity where protection of more expensive membrane filters is important.
Flow Rate 0

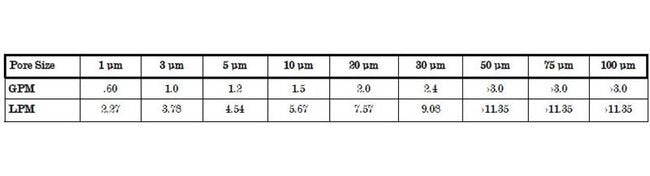

See the Flow Rate table in more image which represents typical water flow at a one psi (69 mbar) pressure differential across a single 2 inch capsule 1.0 ft2 (5.08 cm) of media with 1/2 inch FNPT ports. The test fluid is water at ambient temperature. Higher pressure drops is acceptable, but as flows increase the pressure drop of the housing becomes more apparent.
Maximum Operating Parameters Forward Differential Pressure At 20
50 psi | 3.4 bar
Maximum Operating Parameters Gases Operational Pressure At 20c
60 psi | 4.1 bar
Maximum Operating Parameters Liquid Operational Pressure At 20c
80 psi | 5.5 bar
Maximum Operating Parameters Operating Temperature At 30 Psi 14
110 ºF | 43 ºC
Maximum Operating Parameters Recommended Change Out Pressure
20 psid | 2.4 bar
Maximum Operating Parameters Reverse Differential Pressure At 20
40 psi | 2.7 bar
Pore Size Removal Ratings
0.03 to 100 µ
Quality Standards 0
Our goal is to ensure our customers the greatest possible value for their filtration dollar. We achieve both low cost manufacture and high quality by employing state of the art manufacturing equipment. This computer controlled equipment is highly automated, reducing hand operations that compromise quality. Each operation including assembly, testing, cleaning, drying and packaging is done in appropriately rated clean rooms. Critical Process Filtration manages an ISO 9000 facility that produces validated products to rigorous standards. Manufacturing is controlled using sophisticated MRP software that is networked to work stations in manufacturing centers and inspection points. During the manufacturing and inspection processes, data is collected âreal timeâ from machinery and measuring instruments. This allows variable and attribute data to be quickly and easily analyzed to facilitate constant improvements in both quality and cost.
Sanitization Sterilization Autoclave
250ºF (121ºC), 30 min, multiple cycles
Sanitization Sterilization Chemical Sanitization
Industry standard concentrations of hydrogen peroxide, paracetic acid, sodium hypochlorite and other selected chemicals. Sanitization protocols designed to extend the useful life of CP capsules are available from Critical Process Filtration, Inc.®.
Sanitization Sterilization Filtered Hot Water
194 ºF | 90 ºC
Sanitization Sterilization Inlet Outlet Options
1/2" Female NPT | 1/2" Male NPT | 1/4 Male NPT | 1/4" Female NPT | 3/8" Female NPT | Hose Barb | Sanitary
Sanitization Sterilization Pre Sterilized
Not Sterilized | Pre- Sterilized
Sanitization Sterilization Vent Drain
Standard with Luer- Lok¨ ports and caps

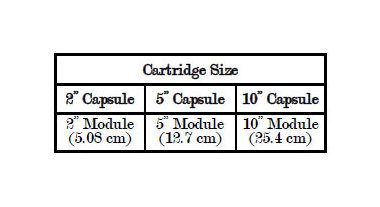

Specifications Capsule Length
2 in | 5 in | 10 in | 23 in | 30 in
Specifications Filter Mediamembrane
Polypropylene GDMB
Specifications Grade Definition
Food and beverage grade capsules have been designed to comply with all FDA requirements for the food industry. Each module is flushed with 17+ megohm-cm water to ensure that no manufacturing debris remains downstream to contaminate your product. This washing also ensures that all extractables which may effect the taste of the product are removed. F grade capsules are designed to give maximum throughput and handle cleaning and sanitization protocols well. Each cartridge module is individually tested for integrity.
Specifications Micron Rating
0.65 µ
Total Performance 0
Critical Process Filtration, Inc.® is a vertically integrated supplier of filtration products and services to industries in which filtration is considered to be a critical part of the manufacturing process. We manufacture a complete line of products to help you achieve all your filtration requirements from a single source.
Usp Biosafety 0
The materials used to construct the membrane capsule filters are non-toxic and meet the requirements for the MEM Elution Cytotoxicity Test and USP24 Plastic Class V1 121ºC Test.
