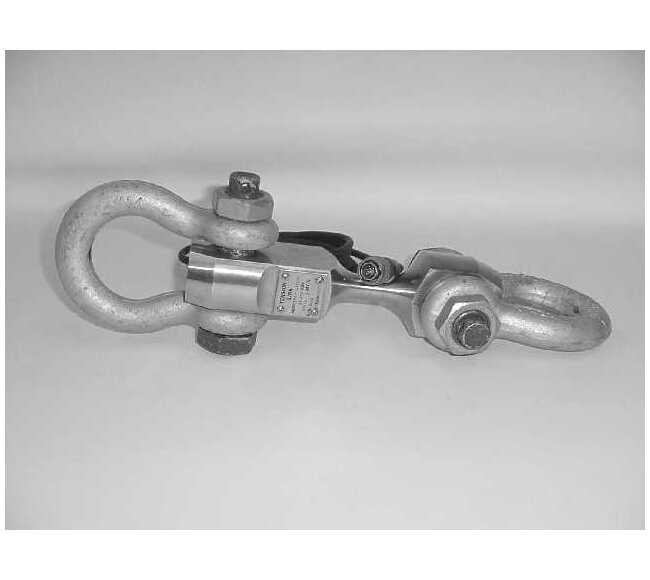

The Crosby STL Series Force Sensing Tension Links are expertly crafted for seamless integration with standard Crosby Shackles, offering precise measurement of applied tension force. With a load capacity ranging from 1,500 to 350,000 pounds, these tension links are engineered with high-quality materials like Aluminum Alloy 7075-T6 and feature a hard coat finish with a Rockwell C-60 hardness. The full bridge 350 Ohm strain gage bridge circuit ensures accurate readings, while the compact design minimizes the impact of external loads. Ideal for weighing and force measuring applications, the Crosby STL Series excels in performance and durability, making it a top choice for institutional buyers seeking reliability and precision.
Product Specifications
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
General Information 0
The Strainsert Tension Links are superior performance sensors, for use in weighing and force measuring applications.Its sensing element consists of a strain gage bridge circuit internally installed in a small hole along its longitudinal axis. This unique arrangement provides a most effective means for the protection and sealing of the strain gage circuit while minimizing the adverse effects of extraneous torsional and flexural loads.Tension Links can be modified for underwater use.
Performance Specs Bridge
Full bridge 350 Ohm (Nominal)
Performance Specs Excitation
12 V AC (Maximum) | 12 V DC (Maximum)
Performance Specs Hysteresis
±0.15% FS
Performance Specs Non Linearity
0.25% FS
Performance Specs Non Repeatability
0.10% FS
Performance Specs Output Signal
2-mV/V (Nominal) | 2-mV/V (Standardized Output)
Performance Specs Overload Without Zero Shift
150%
Performance Specs Static Overload
150% without zero or open shift
Performance Specs Temp Effects On Output
0.003% load / °F (Nominal)
Performance Specs Temp Effects On Zero
0.003% FS / °F
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Length
15/16 in
Specifications B Width
15/16 in
Specifications Connector Type
Connector | Permanently Attached Cable
Specifications C Diameter
2 in

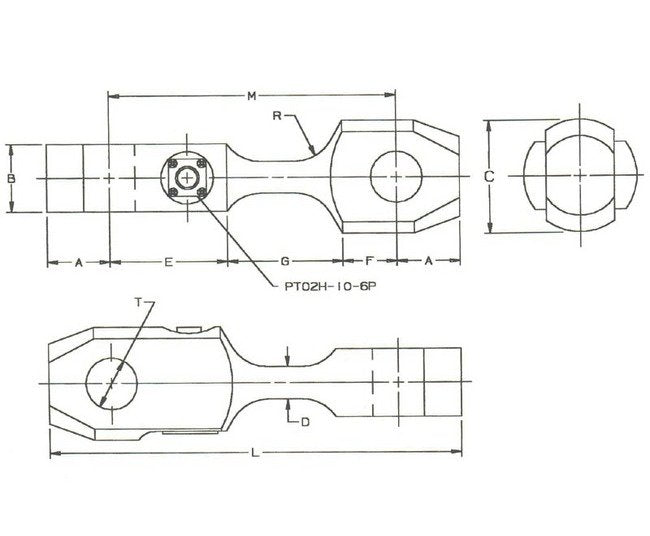

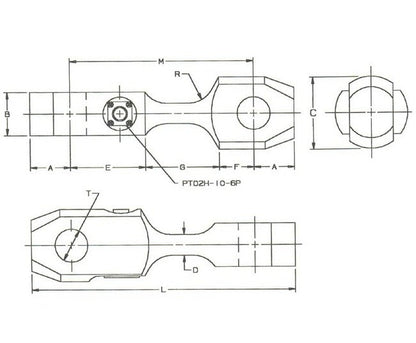

Specifications Dimensional Drawing
STL Series, Force Sensing Tension Links for Anchor and Chain Shackles
Specifications D Diameter
0.779 in
Specifications E Length
2-9/16 in
Specifications F Length
9/16 in
Specifications G Length
2-3/8 in
Specifications Load Capacity
6500 lb
Specifications L Overall Length
7-3/8 in
Specifications Material
Aluminum Alloy 7075-T6, Hard Coat Finish: Rockwell C-60
Specifications M Length
5-1/2 in
Specifications R Radius
1/2 in
Specifications Safety Factor
4.1
Specifications Shackle Size
5/8 Inch
Specifications T Diameter
0.781 in
Specifications Weight
1 lb
