Crosby STL Series Tension Links with Force Sensing Technology
Crosby STL Series Tension Links with Force Sensing Technology
SKU:TEN-12753a
Enhance tension measurement accuracy with Crosby's STL Series Tension Links: reliable, precise, and adaptable for diverse applications.
Regular price
$2,750.00
Regular price
Sale price
$2,750.00
Unit price
per
Initiate Order
Crosby STL Series Tension Links with Force Sensing Technology
$2,750.00
Quantity: 1
Claim Your Seller Account
Crosby STL Series Tension Links with Force Sensing Technology
$2,750.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

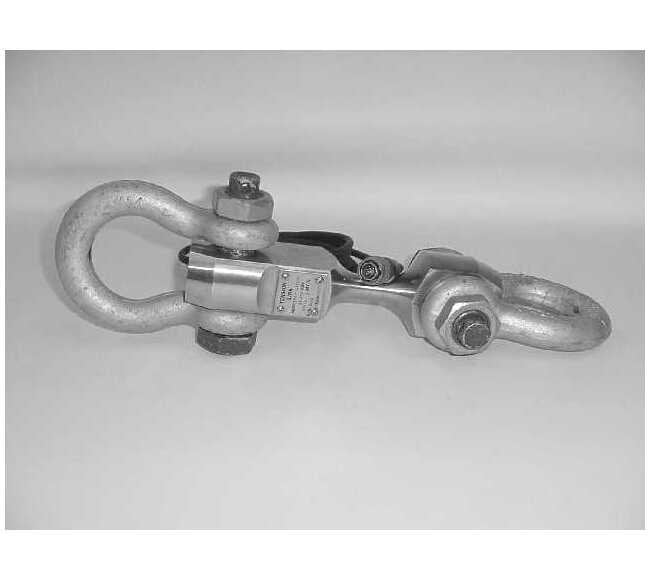

The Crosby STL Series Force Sensing Tension Links are engineered for seamless compatibility with standard Crosby Shackle hardware, providing precise and rapid measurement of tension forces ranging from 1,500 to 350,000 pounds. Constructed with high-quality stainless steel, these tension links boast a load capacity of 160,000 lb and exhibit exceptional performance specifications including overload protection, full bridge 350 Ohm bridge, and minimal temperature effects. The strain gage bridge circuit design ensures optimal protection and sealing, making them ideal for various force measuring applications. Additionally, the Tension Links can be customized for underwater usage, offering versatility and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
General Information 0
The Strainsert Tension Links are superior performance sensors, for use in weighing and force measuring applications.Its sensing element consists of a strain gage bridge circuit internally installed in a small hole along its longitudinal axis. This unique arrangement provides a most effective means for the protection and sealing of the strain gage circuit while minimizing the adverse effects of extraneous torsional and flexural loads.Tension Links can be modified for underwater use.
Performance Specs Bridge
Full bridge 350 Ohm (Nominal)
Performance Specs Excitation
12 V AC (Maximum) | 12 V DC (Maximum)
Performance Specs Hysteresis
±0.15% FS
Performance Specs Non Linearity
0.25% FS
Performance Specs Non Repeatability
0.10% FS
Performance Specs Output Signal
2-mV/V (Nominal) | 2-mV/V (Standardized Output)
Performance Specs Overload Without Zero Shift
150%
Performance Specs Static Overload
150% without zero or open shift
Performance Specs Temp Effects On Output
0.003% load / °F (Nominal)
Performance Specs Temp Effects On Zero
0.003% FS / °F
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Length
3-1/8 in
Specifications B Width
3-3/4 in
Specifications Connector Type
Connector | Permanently Attached Cable
Specifications C Diameter
5-3/8 in

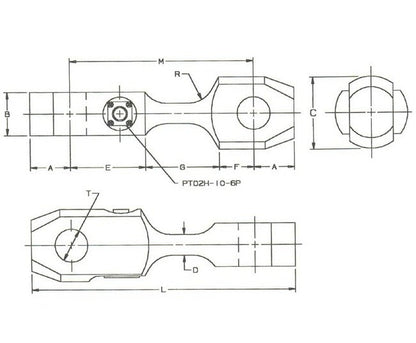

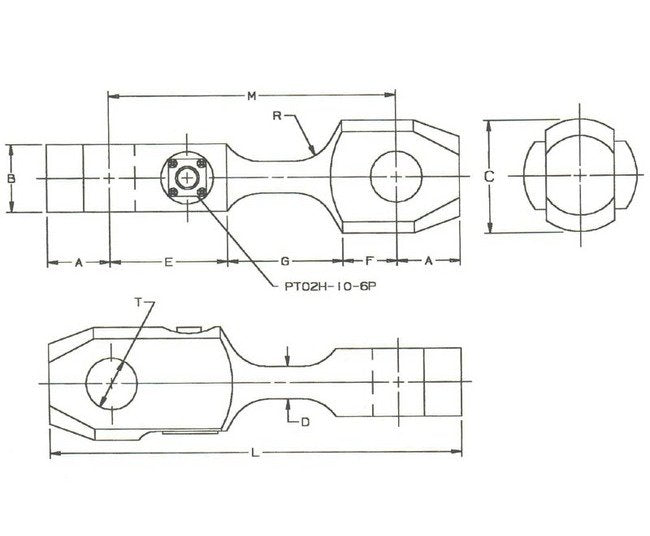

Specifications Dimensional Drawing

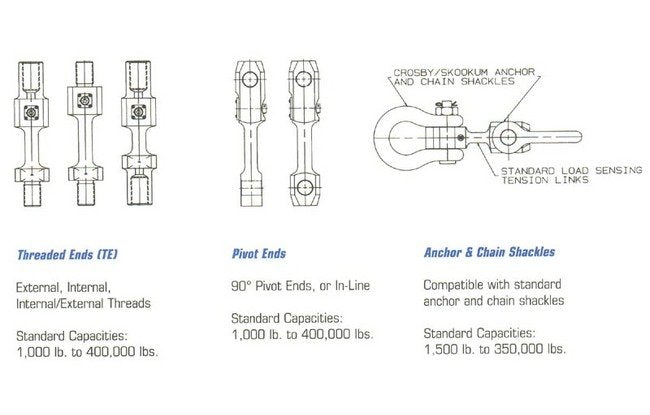

STL Series, Force Sensing Tension Links for Anchor and Chain Shackles
Specifications D Diameter
2.054 in
Specifications E Length
3-1/2 in
Specifications F Length
2-5/8 in
Specifications G Length
6-1/8 in
Specifications Load Capacity
160000 lb
Specifications L Overall Length
18-1/2 in
Specifications Material
Stainless Steel 17-4, H-1025 (Standard)
Specifications M Length
12-1/4 in
Specifications R Radius
1 in
Specifications Safety Factor
3.0
Specifications Shackle Size
2-1/2 Inch
Specifications T Diameter
2.875 in
Specifications Weight
56 lb
