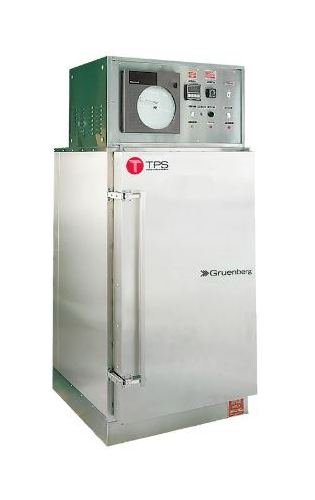

CS40H47, 46.8 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven
CS40H47, 46.8 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven
SKU:GRU-b20180
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CS40H47, 46.8 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven
$49.99
Quantity: 1
Claim Your Seller Account
CS40H47, 46.8 Cubic feet (ft³) Capacity Gruenberg Industrial Cabinet Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Gruenberg designs and manufactures a complete line of standard and custom industrial cabinet ovens to accommodate a variety of thermal processing applications up to 1200°F, which are ideally suited for annealing, aging, core hardening, drying, preheating, curing, and component testing. With additional options, they can also be used for applications such as epoxy, plastic, and rubber curing; paint and varnish baking; textile drying; and sterilizing.
Product Specifications
Specifications Air Flow
Horizontal
Specifications Circulation At 70f
1100 CFM
Specifications Exterior Depth
38 in | 96.5 cm
Specifications Exterior Height
74.5 in | 189.2 cm
Specifications Exterior Width
66 in | 167.6 cm
Specifications Gruenberg Industrial Oven Features
chamber so there is no radiant influence on the work in process | CHIL construction ensures minimal heat transfer from oven chamber to the exterior | Energy-efficient, Incoloy® sheathed, seamless tubular heaters | Heating elements are suspended in the plenum, which is adjacent to the process | Heavy-duty, fully welded structural steel frame | Insulation is moisture-proof, non-combustible, non-settling, and asbestos-free | Lid is constructed using a structural steel frame to ensure sealing integrity | Removable side and back walls for easy clean-up and maintenance
Specifications Heater Wattage
7.5 kW
Specifications Insulation Thickness Inches
4
Specifications Interior Depth
30 in | 76.2 cm
Specifications Interior Height
54 in | 137.2 cm
Specifications Interior Volume
46.8 ft³
Specifications Interior Width
50 in | 127 cm
Specifications Maximum Temperature
400 ºF
Specifications Shipping Weight
2000 lb
