CSE5 Series Frequency Current Sense Transformers
CSE5 Series Frequency Current Sense Transformers
SKU:CUR-72cecb
Experience precision and efficiency with the CSE5 Series Current Sense Transformers, ideal for AC current detection and control circuit applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CSE5 Series Frequency Current Sense Transformers
$29.99
Quantity: 1
Claim Your Seller Account
CSE5 Series Frequency Current Sense Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

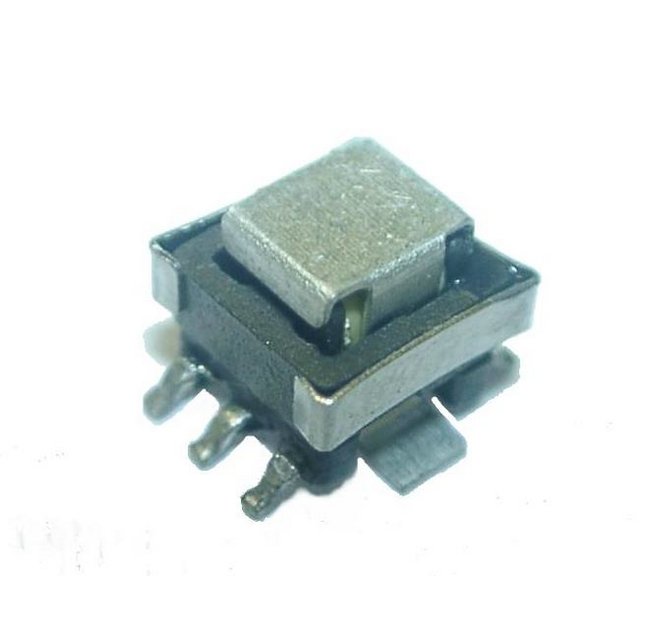

The CSE5 Series High Frequency Current Sense Transformers are expertly designed for surface mounting with optimal performance at 250 kHz and above. Featuring a turns ratio of 1:70, min. secondary impedance of 980 µH, and max. secondary DCR of 4750 mOhm, these transformers guarantee precise AC current detection and output supply for control circuits. With a compact height of 5.3 mm and primary current rating of 20 A, they excel in switching power supply applications. Additionally, these transformers comply with RoHS standards, ensuring environmental sustainability and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Red
Electrical Specifications At 25 Degree Celsius C Temperature Max
4750 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
980 µH
Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:70
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
37.8 V·µs

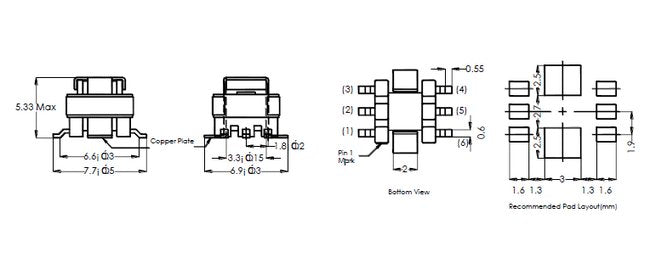

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
