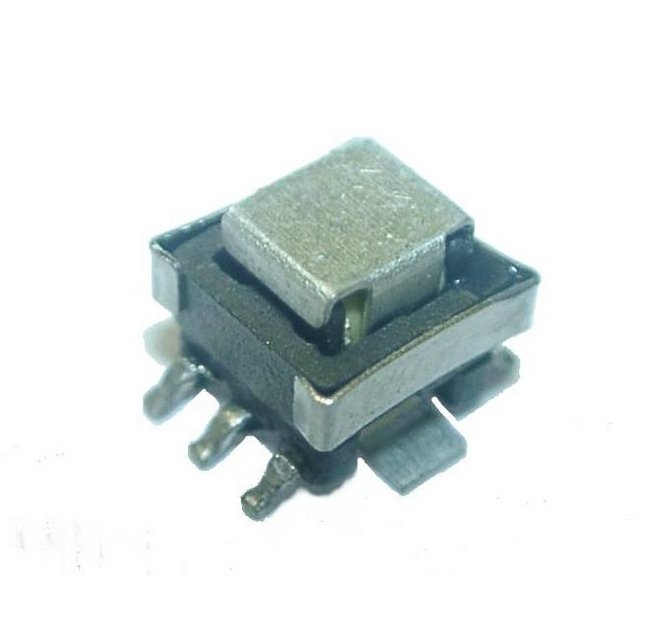

The CSE5 Series High Frequency Current Sense Transformers are expertly designed for optimal performance, specifically at frequencies of 250 kHz and above. With a compact surface mounting design and a primary current rating of 20 A, these transformers offer precise AC current detection and output supply for control circuits. Their custom designs cater to unique requirements, while meeting RoHS compliance standards since February 2016, ensuring eco-friendly manufacturing practices.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
Ac current detectionOutput supply for control circuitSwitching Power Supply
Electrical Specifications At 25 Degree Celsius C Temperature Col
Green
Electrical Specifications At 25 Degree Celsius C Temperature Max
8500 mOhm
Electrical Specifications At 25 Degree Celsius C Temperature Min
3000 µH
Electrical Specifications At 25 Degree Celsius C Temperature Tur
1:125
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Frequency
250 kHz
Specifications Maximum Energy Time Et
67.5 V·µs

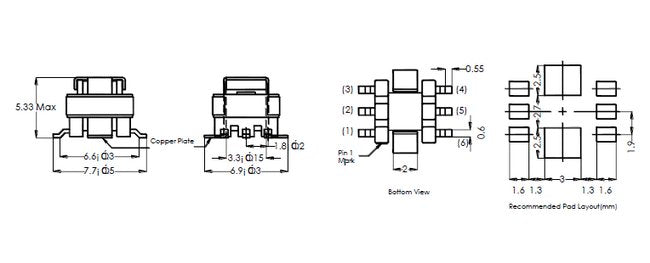

Specifications Maximum Height
5.3 mm
Specifications Min Insulation Resistance
10 mOhm
Specifications Operating Temperature Range
-15 to +105 ºC
Specifications Primary Current Rating
20 A
