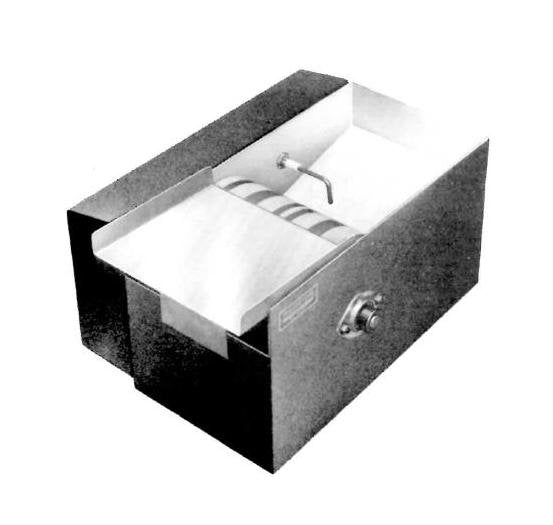

The CSO-30 Series Magnetic Coolant Filter is an essential tool for industries using non-conducting oil-based coolant. It features a continuous operation mechanism with a magnetic drum width of 4 1/4 inches, ensuring efficient separation of ferrous particles. With a capacity of 10 gpm and a powerful motor of 1/20 hp, this filter effectively maintains clean coolant by removing swarf and extending the lifespan of machinery. Designed for special applications, this coolant filter guarantees optimal performance and reliability.
Product Specifications
Additional Information 0
To check the operation of the drum, insert the plug in a 115 Volt line, turn on the toggle switch. Using a steel rod or screw driver, short the 1/4 inch diameter stainless probe to the case. The drum will rotate while the probe is shorted to the case.
Manufacturing Notes 0
Coolant separators designed and build for special applications
Operating Procedure 0

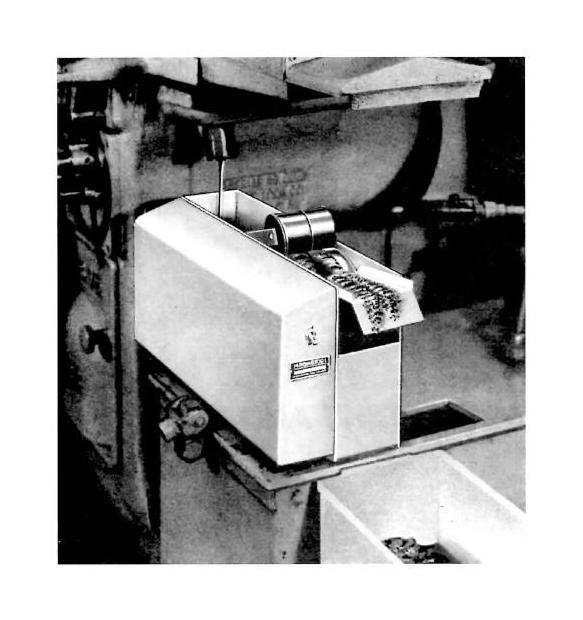

With Coolant Filter switch "ON", the Magnetic drum remains in a static position. Dirty coolant is fed from the machine into the reservoir of the Coolant Filter and flows under the drum which attracts the ferrous particles and builds up a "cake" of ferrous material. When the coolant passageway is blocked the coolant rises until it touches the probe. (The probe is the 1/4 inch diameter stainless steel rod). This activates the motor turning the drum a few degrees, clearing the passageway and allowing the level of the coolant to drop and the motor is turned off. The swart is eventually forced off the end of the discharge Chute.

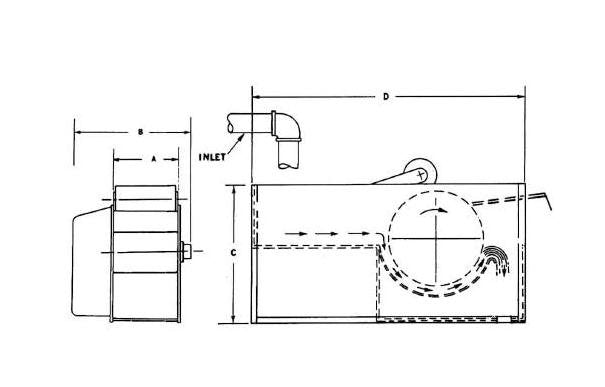

Specifications Capacity
10 gpm
Specifications Coolant Type
Non-conducting oil | Water
Specifications Height C
9 1/4 in
Specifications Length D
17 in
Specifications Magnetic Drum Width A
4 1/4 in
Specifications Motor Frequency
60 Hz
Specifications Motor Power
1/20 hp
Specifications Motor Voltage
120 V
Specifications Net Weight
95 lb
Specifications Overall Width B
10 in
