CSO-60 Magnetic Coolant Filter
CSO-60 Magnetic Coolant Filter
SKU:MAG-fdbd7c
Efficiently separate ferrous particles with CSO-60 Magnetic Coolant Filter, ensuring optimal machining conditions. Continuous operation for uninterrupted filtration.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
CSO-60 Magnetic Coolant Filter
$1,899.99
Quantity: 1
Claim Your Seller Account
CSO-60 Magnetic Coolant Filter
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

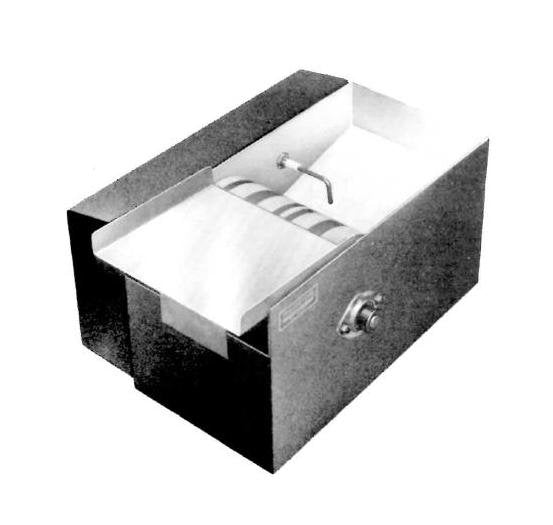

The CSO-60 Series Magnetic Coolant Filter is a high-performance filtration system designed for effectively separating ferrous particles from non-conducting oil coolant. With a capacity of 20 gpm and a motor power of 1/20 hp, this filter ensures efficient removal of swarf from coolant, maintaining optimal machining conditions. The continuous operation of the drum and urethane squeegee roll guarantees uninterrupted filtration, enabling smooth flow back to the tank. Designed for durability and ease of maintenance, this coolant filter offers reliable performance for industrial applications requiring strict adherence to coolant quality standards.
Product Specifications
Additional Information 0
To check the operation of the drum, insert the plug in a 115 Volt line, turn on the toggle switch. Using a steel rod or screw driver, short the 1/4 inch diameter stainless probe to the case. The drum will rotate while the probe is shorted to the case.
Manufacturing Notes 0
Coolant separators designed and build for special applications
Operating Procedure 0

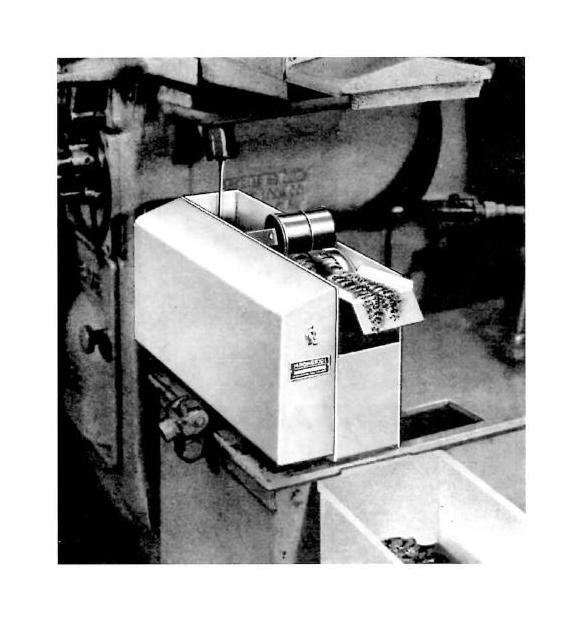

With Coolant Filter switch "ON", the Magnetic drum remains in a static position. Dirty coolant is fed from the machine into the reservoir of the Coolant Filter and flows under the drum which attracts the ferrous particles and builds up a "cake" of ferrous material. When the coolant passageway is blocked the coolant rises until it touches the probe. (The probe is the 1/4 inch diameter stainless steel rod). This activates the motor turning the drum a few degrees, clearing the passageway and allowing the level of the coolant to drop and the motor is turned off. The swart is eventually forced off the end of the discharge Chute.
Specifications Capacity
20 gpm
Specifications Coolant Type
Non-conducting oil | Water

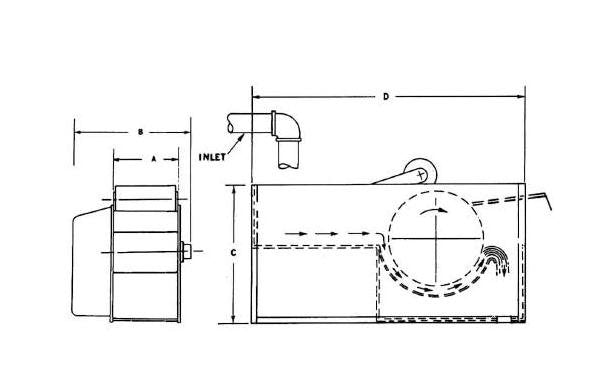

Specifications Height C
9 1/4 in
Specifications Length D
17 in
Specifications Magnetic Drum Width A
8 7/16 in
Specifications Motor Frequency
60 Hz
Specifications Motor Power
1/20 hp
Specifications Motor Voltage
120 V
Specifications Net Weight
150 lb
Specifications Overall Width B
13 1/16 in
