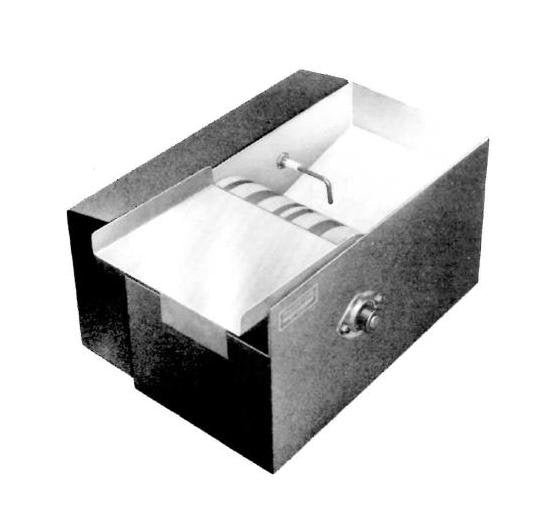

The CSO-90 Series Magnetic Coolant Filter is a premier solution for non-conducting oil coolant filtration needs in both consumer and institutional settings. Utilizing an advanced indexing drum method with continuous operation, this filter effectively separates ferrous particles from coolant, ensuring optimal performance and extending machinery lifespan. With a capacity of 30 gpm, and precise dimensions for seamless integration, it is built for efficiency and durability. The 1/20 hp motor, operating at 120V/60Hz, ensures reliable performance. Designed and manufactured for specialized applications, this filter meets industry standards for quality and effectiveness.
Product Specifications
Additional Information 0
To check the operation of the drum, insert the plug in a 115 Volt line, turn on the toggle switch. Using a steel rod or screw driver, short the 1/4 inch diameter stainless probe to the case. The drum will rotate while the probe is shorted to the case.
Manufacturing Notes 0
Coolant separators designed and build for special applications
Operating Procedure 0

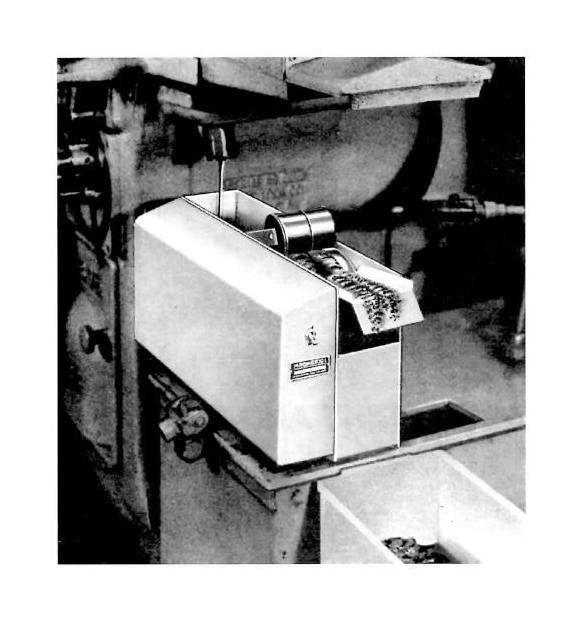

With Coolant Filter switch "ON", the Magnetic drum remains in a static position. Dirty coolant is fed from the machine into the reservoir of the Coolant Filter and flows under the drum which attracts the ferrous particles and builds up a "cake" of ferrous material. When the coolant passageway is blocked the coolant rises until it touches the probe. (The probe is the 1/4 inch diameter stainless steel rod). This activates the motor turning the drum a few degrees, clearing the passageway and allowing the level of the coolant to drop and the motor is turned off. The swart is eventually forced off the end of the discharge Chute.
Specifications Capacity
30 gpm
Specifications Coolant Type
Non-conducting oil | Water

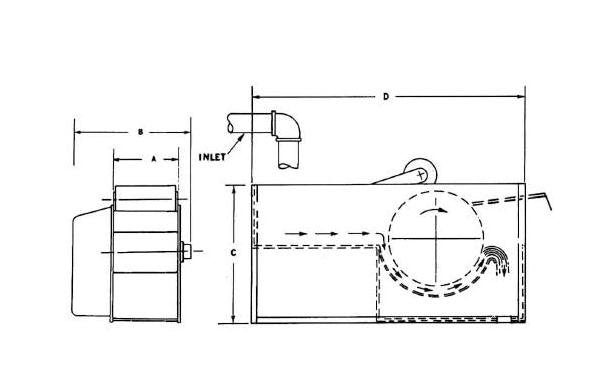

Specifications Height C
9 1/4 in
Specifications Length D
17 in
Specifications Magnetic Drum Width A
12 5/8 in
Specifications Motor Frequency
60 Hz
Specifications Motor Power
1/20 hp
Specifications Motor Voltage
120 V
Specifications Net Weight
200 lb
Specifications Overall Width B
17 5/16 in
