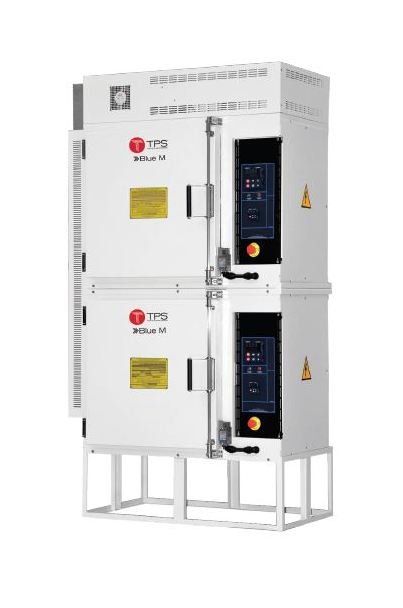

CSP Single Industrial Safety Oven with Vertical Air Flow
CSP Single Industrial Safety Oven with Vertical Air Flow
SKU:BLU-390e98
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CSP Single Industrial Safety Oven with Vertical Air Flow
$49.99
Quantity: 1
Claim Your Seller Account
CSP Single Industrial Safety Oven with Vertical Air Flow
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
This small, cost-effective industrial safety oven meets NFPA Bulletin 86 requirements for handling solvents and expelling hazardous vapor. Ideal for industrial safety oven applications such as flash curing paint samples, drying solvents, curing epoxies or adhesives. This industrial safety oven is also useful in laboratories that require a variety of product loads.
Product Specifications
Specifications Ac Voltage At 1 Phase
208 V | 240 V
Specifications Ambient Temperature
343 ºC | 650 ºF
Specifications Features
CSP industrial safety oven operating range | Rugged industrial safety oven construction | Reliable industrial safety oven heating elements | Volatile fume exhaust system | Safety relief panel | Advanced controls | Safety purge timer | Independent over-temperature protection | Flexible product loading
Specifications Floor Load
27.5 lb/ft²
Specifications Frequency
60 Hz
Specifications General Specifications
Temperature Range: +10°C above ambient to +343°C (+650°F) | Temperature uniformity: 1.5% of setpoint after stabilization with exhaust | Control accuracy: 0.25% of setpoint
Specifications Line Current Per Phase At 208 Volts V 1 Phase
30 A | 60 A
Specifications Line Current Per Phase At 240 Volts V 1 Phase
34 A | 68 A
Specifications Machine Footprint
10.9 ft²
Specifications Machine Weight
300 lb | 136.4 kg
Specifications Number Of Workspaces
1
Specifications Options
Circular chart recorder | Digital process timer | Floor stand | Fused power disconnect mounted on unit | Nickel-plated or stainless steel shelves | Watlow F4 profiling controller with digital communications
Specifications Overall Depth
35 in | 889 mm
Specifications Overall Height
40 in | 1016 mm
Specifications Overall Width
45 in | 1143 mm
Specifications Rated Power At 208 Volts V 1 Phase At 30 Ampere A
5.3 kW
Specifications Rated Power At 208 Volts V 1 Phase At 60 Ampere A
2 x 5.3 kW
Specifications Rated Power At 240 Volts V 1 Phase At 34 Ampere A
7 kW
Specifications Rated Power At 240 Volts V 1 Phase At 68 Ampere A
2 x 7 kW
Specifications Temperature
15 ºC
Specifications Workspace Depth
15 in | 381 mm
Specifications Workspace Height
18.9 in | 480 mm
Specifications Workspace Width
18 in | 457.2 mm
