CST Series Low Frequency Current Sense Transformers

CST Series Low Frequency Current Sense Transformers

CUR-be6e6c

Detect current flow accurately and reliably with CST Series Low Frequency Current Sense Transformers. UL rated materials for safety.

$49.99
$49.99
Sale

Initiate Order

CST Series Low Frequency Current Sense Transformers

CST Series Low Frequency Current Sense Transformers

$49.99

Quantity: 1

Claim Your Seller Account

CST Series Low Frequency Current Sense Transformers

CST Series Low Frequency Current Sense Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

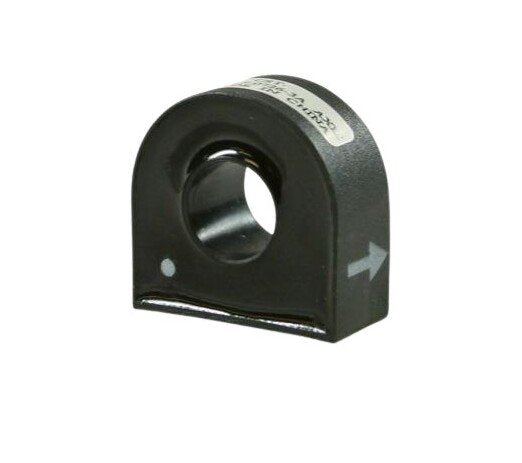

The CST Series Low Frequency Current Sense Transformers by Triad are precision-designed to detect current flow through conductors with exceptional reliability. Operating optimally at 50-60 Hz, these transformers feature UL rated 130 °C materials for enhanced safety. With a primary current of 20 A and a nominal DCR of 40.00 Ohm, these transformers offer accurate measurements with an overall turn ratio of 1000:1. Constructed for durability and performance, they come in compact case dimensions to suit various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

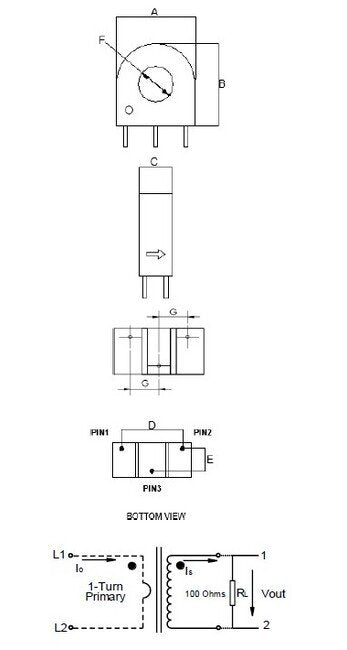

Specifications Case Dimension A
23.50 mm
Specifications Case Dimension B
24.80 mm
Specifications Case Dimension C
12.00 mm
Specifications Case Dimension D
15.00 mm
Specifications Case Dimension E
7.50 mm
Specifications Case Dimension F
8.50 mm
Specifications Case Dimension G
7.50 mm
Specifications Electical Load At Rated Primary Current Ip 100
0.0977 V·A
Specifications Nominal Dcr
40.00 Ohm
Specifications Overall Turn Ratio
1000:1
Specifications Primary Current Ip
20 A
Specifications Reference Net Weight
20.0 g
Specifications Terminating Resistor
100 Ohm | 0.0400 W
Specifications Ul Rated Material Temperature
130 ºC

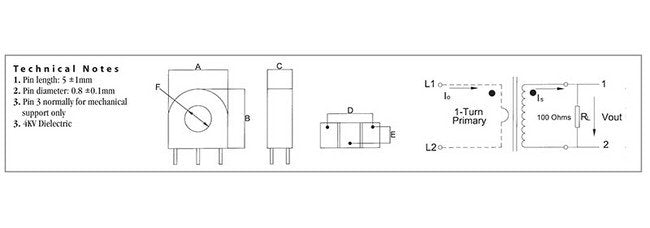

Technical Notes 0
Pin3 for mechanical support only.Pin diameter is 0.8±0.1 mm.Pin length is 5±1mm.Accuracy: ±3% from 2 to 20A.Operating Temperature: -10 to 65°CStorage Temperature: -25 to 85°C
