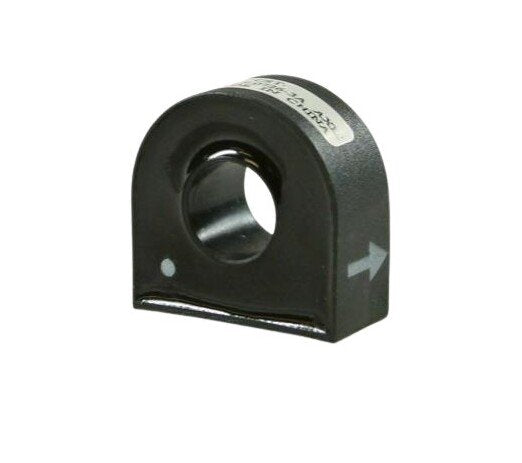

• CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC - Image 1
  • CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC - Image 2
  • CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC - Image 3
  • CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC - Image 4
1 4
Triad Magnetics →

CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC

CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC

CUR-e21abf

Detect currents accurately with the CST Series Low Frequency Current Sense Transformers by Triad. UL rated 130ºC materials ensure reliability and precision.

$29.99
$29.99
Sale

Initiate Order

CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC

CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC

$29.99

Quantity: 1

Claim Your Seller Account

CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC

CST Series Low Frequency Current Sense Transformers - 10A, 100 Ohm, UL Rated 130ºC

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

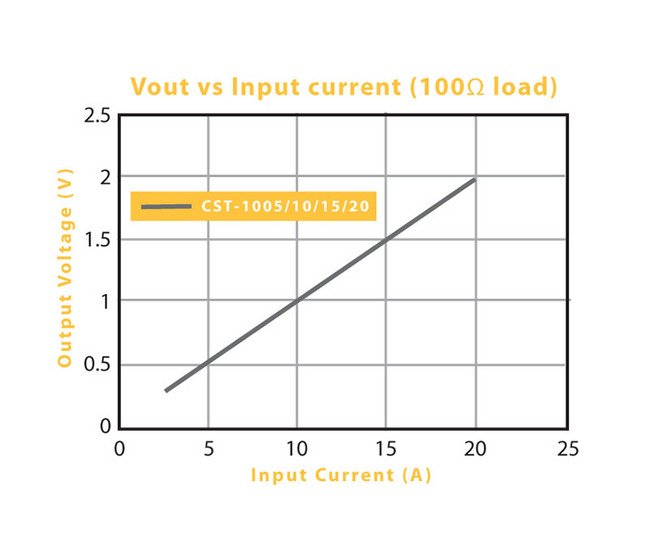

The CST Series Low Frequency Current Sense Transformers by Triad are essential for accurately detecting currents within a conductor. These highly reliable transformers are specifically designed to operate effectively at frequencies between 50 - 60 Hz. Utilizing UL rated 130 ºC materials, these transformers ensure long-term durability and safety. With primary current of 10A, terminating resistor of 100 Ohm, and precise electrical load calculations, the CST Series guarantees optimal performance. Featuring compact dimensions and an overall turn ratio of 1000:1, these transformers offer unmatched efficiency and accuracy in current sensing applications.

Product Specifications

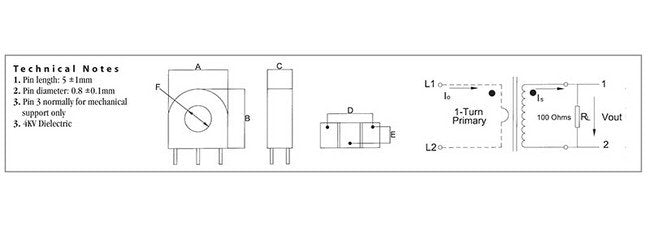

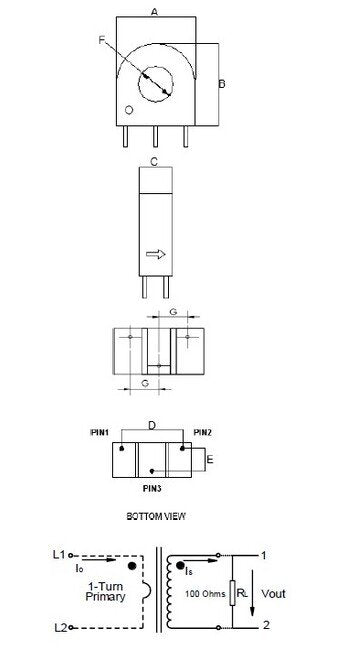

Specifications Case Dimension A
23.50 mm
Specifications Case Dimension B
24.80 mm
Specifications Case Dimension C
12.00 mm
Specifications Case Dimension D
15.00 mm
Specifications Case Dimension E
7.50 mm
Specifications Case Dimension F
8.50 mm
Specifications Case Dimension G
7.50 mm
Specifications Electical Load At Rated Primary Current Ip 100
0.0969 V·A
Specifications Nominal Dcr
40.00 Ohm
Specifications Overall Turn Ratio
1000:1
Specifications Primary Current Ip
10 A
Specifications Reference Net Weight
20.0 g
Specifications Terminating Resistor
100 Ohm | 0.0100 W
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0
Pin3 for mechanical support only.Pin diameter is 0.8±0.1 mm.Pin length is 5±1mm.Accuracy: ±3% from 2 to 20A.Operating Temperature: -10 to 65°CStorage Temperature: -25 to 85°C
