CST Series Low Frequency Current Sense Transformers - High Precision Monitoring Solution

CST Series Low Frequency Current Sense Transformers - High Precision Monitoring Solution

CUR-b1b902

Enhance monitoring accuracy with CST Series Low Frequency Current Sense Transformers. UL rated 130°C materials for reliable performance.

$55.99
$55.99
Sale

Initiate Order

CST Series Low Frequency Current Sense Transformers - High Precision Monitoring Solution

CST Series Low Frequency Current Sense Transformers - High Precision Monitoring Solution

$55.99

Quantity: 1

Claim Your Seller Account

CST Series Low Frequency Current Sense Transformers - High Precision Monitoring Solution

CST Series Low Frequency Current Sense Transformers - High Precision Monitoring Solution

$55.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

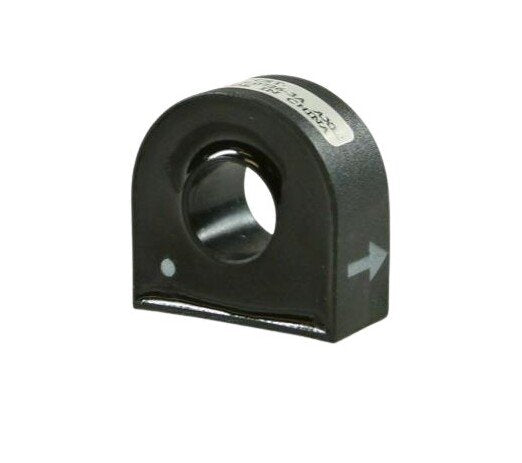

The CST Series Low Frequency Current Sense Transformers by Triad provide exceptional accuracy in detecting current flow through conductors, ensuring reliable performance in the 50 - 60 Hz frequency range. With a primary current rating of 30 A and terminating resistor of 100 Ohm, these transformers offer precise readings. Constructed with UL rated 130°C materials, they guarantee safety and durability. Featuring a turn ratio of 1000:1 and detailed technical specifications for optimal operation, these transformers are ideal for a wide range of applications requiring high precision current sensing.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

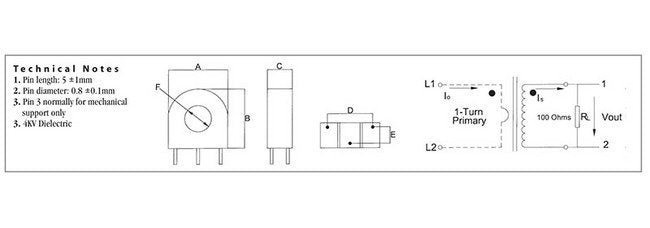

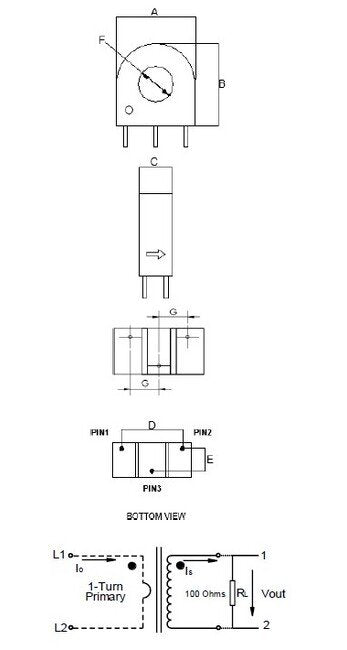

Specifications Case Dimension A
30.20 mm
Specifications Case Dimension B
30.20 mm
Specifications Case Dimension C
14.30 mm
Specifications Case Dimension D
20.32 mm
Specifications Case Dimension E
10.16 mm
Specifications Case Dimension F
11.40 mm
Specifications Case Dimension G
10.16 mm
Specifications Electical Load At Rated Primary Current Ip 100
0.0977 V·A
Specifications Nominal Dcr
46.00 Ohm
Specifications Overall Turn Ratio
1000:1
Specifications Primary Current Ip
30 A
Specifications Reference Net Weight
30.0 g
Specifications Terminating Resistor
100 Ohm | 0.0900 W
Specifications Ul Rated Material Temperature
130 ºC
Technical Notes 0

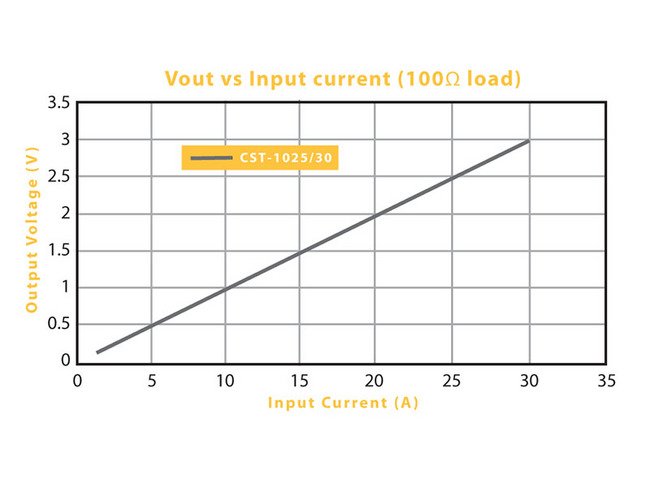

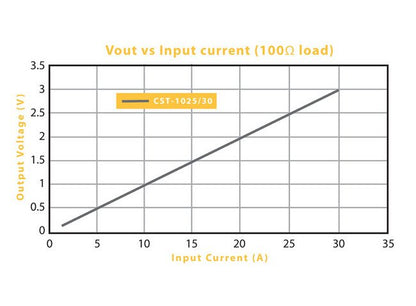

Pin3 for mechanical support only.Pin diameter: 0.8±0.1 mm.Pin length: 5±1mm.Primary to secondary isolation: 4000VAC, 60HzOperating Temperature: -10°C to +65°CStorage Temperature: -25 to 85°CAccuracy Class: 5% from 3Arms - 30Arms with 100O burden.Burden value can be reduced to increase current capability above30Arms. Adjust burden value inversely proportional to input current.
