CSZA Forged Brass Ball Valve
CSZA Forged Brass Ball Valve
SKU:VAL-aa8465
Reliable CSZA Forged Brass Ball Valve, CSA/UL/FM certified, ideal for industrial use.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
CSZA Forged Brass Ball Valve
$34.99
Quantity: 1
Claim Your Seller Account
CSZA Forged Brass Ball Valve
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CSZA Forged Brass Ball Valve is a premium choice for industrial applications, featuring maintenance-free double O-ring stem seals, two-piece forged brass body, blowout-proof stem with Ni plating, PTFE seats, and chrome-plated full port design. Pressure rated to 150 PSI for saturated steam and 600 PSI for non-shock cold water, oil, or gas. This valve meets stringent standards including CSA, UL, and FM certifications. With dimensions of 1.26" D and 2.16" H, it offers reliability and durability essential for demanding environments.
Product Specifications

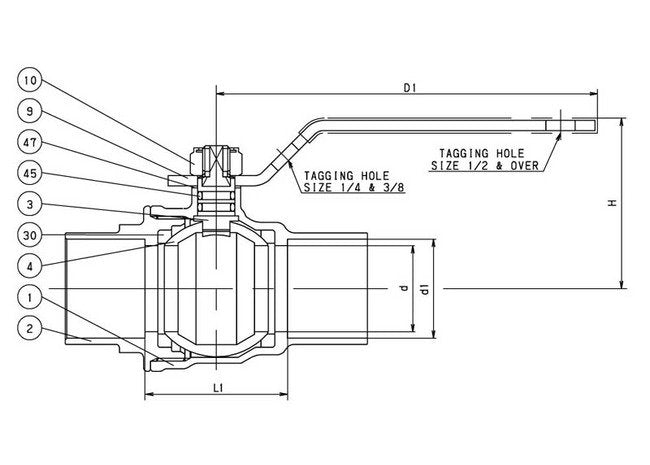

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
68.00
Specifications Carton Qty
24
Specifications Class
CSZA
Specifications Dimension D
1.26
Specifications Dimension D1
4.33
Specifications Dimension D1 Max
1.382
Specifications Dimension D1 Min
1.378
Specifications Dimension D2
1 1/4 inches
Specifications Dimension H
2.16
Specifications Dimension L
3.31
Specifications Dimension L1
2.00
Specifications End Size
Solder
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
