CSZA Forged Brass Ball Valve - 1/2 inches Solder End
CSZA Forged Brass Ball Valve - 1/2 inches Solder End
SKU:VAL-6ede9b
High-performance CSZA Forged Brass Ball Valve- CSA, UL, FM Certified
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CSZA Forged Brass Ball Valve - 1/2 inches Solder End
$49.99
Quantity: 1
Claim Your Seller Account
CSZA Forged Brass Ball Valve - 1/2 inches Solder End
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CSZA Forged Brass Ball Valve is a premium choice for industrial applications, offering maintenance-free operation with double O-ring stem seals and blowout-proof stem for enhanced safety. Crafted from high-quality forged brass materials, this valve features a full port design, chrome-plated vented ball, and PTFE seats for optimal performance under high pressure and temperature conditions. Certified to CSA, UL, and FM standards, this valve ensures reliability and durability in critical environments, making it ideal for both consumer and institutional buyers.
Product Specifications

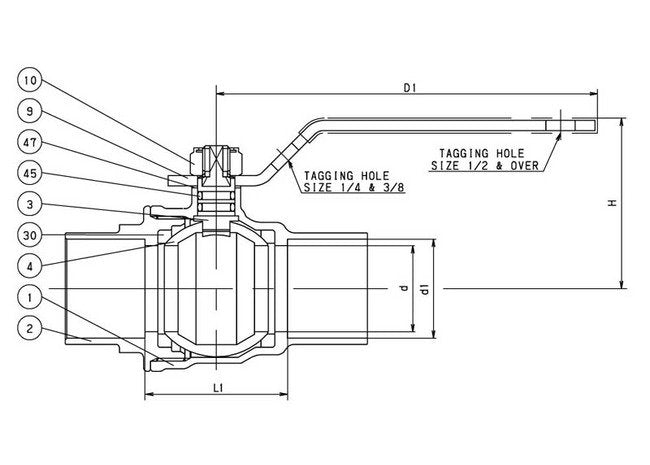

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
29.00
Specifications Carton Qty
96
Specifications Class
CSZA
Specifications Dimension D
0.59
Specifications Dimension D1
3.15
Specifications Dimension D1 Max
0.631
Specifications Dimension D1 Min
0.627
Specifications Dimension D2
1/2 inches
Specifications Dimension H
1.57
Specifications Dimension L
2.08
Specifications Dimension L1
1.13
Specifications End Size
Solder
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
