CSZA Forged Brass Ball Valve - Solder End, 1/4 inches
CSZA Forged Brass Ball Valve - Solder End, 1/4 inches
SKU:VAL-c87e6e
CSZA Forged Brass Ball Valve - High-quality, CSA certified valve for steam & water, ideal for institutional use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CSZA Forged Brass Ball Valve - Solder End, 1/4 inches
$49.99
Quantity: 1
Claim Your Seller Account
CSZA Forged Brass Ball Valve - Solder End, 1/4 inches
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CSZA Forged Brass Ball Valve features a two-piece forged brass body, blowout-proof stem with nickel plating, PTFE seats, dual O-ring stem seals, and a chrome-plated full port design. With a pressure rating of 150 PSI for saturated steam up to 366°F and 600 PSI for cold water, oil, or gas, this valve ensures durability and reliability. Certified to CSA, UL, and FM standards, it meets MSS-SP 110 requirements for quality assurance. A perfect choice for institutional applications requiring precision engineering and long-term performance.
Product Specifications

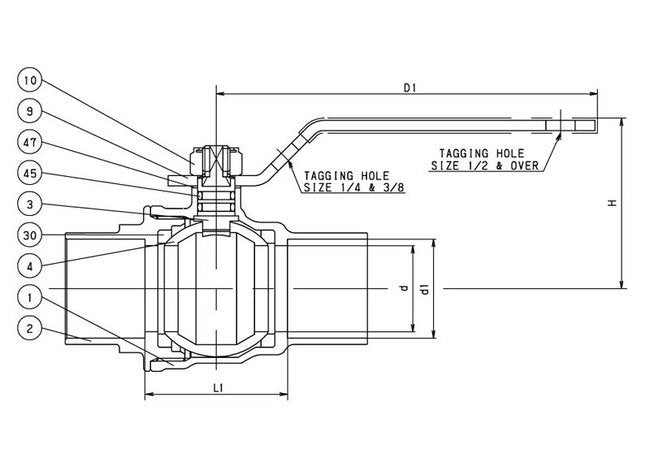

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
29.00
Specifications Carton Qty
120
Specifications Class
CSZA
Specifications Dimension D
0.39
Specifications Dimension D1
2.76
Specifications Dimension D1 Max
0.381
Specifications Dimension D1 Min
0.377
Specifications Dimension D2
1/4 inches
Specifications Dimension H
1.46
Specifications Dimension L
1.65
Specifications Dimension L1
1.05
Specifications End Size
Solder
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
