CSZA Solder End Cast Bronze Ball Valve
CSZA Solder End Cast Bronze Ball Valve
SKU:VAL-58771a
Reliable CSZA Cast Bronze Ball Valve with double O-ring seals, full port design, and PTFE seats for industrial use.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
CSZA Solder End Cast Bronze Ball Valve
$79.99
Quantity: 1
Claim Your Seller Account
CSZA Solder End Cast Bronze Ball Valve
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CSZA Cast Bronze Ball Valve is a reliable choice for industrial applications, featuring maintenance-free double O-ring stem seals, a two-piece body design, full port for optimal flow, chrome-plated vented ball, and blowout-proof stem with PTFE seats. With a pressure rating of 150 PSI for saturated steam up to 366°F and 600 PSI for cold water, oil, or gas, this valve meets stringent MSS-SP 110 standards. Crafted with high-quality materials including forged brass and bronze, this valve ensures durability and longevity in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

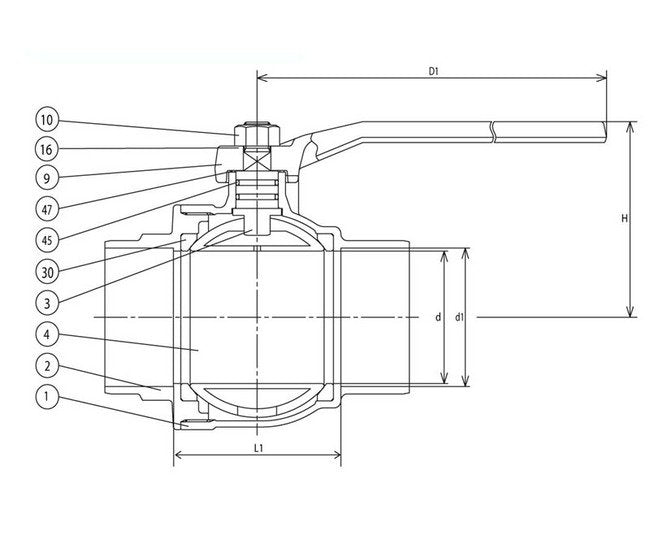

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) (4") Cast Bronze (B584, C84400) 2 Body Cap Forged Brass (B283, C37700) (4") Cast Bronze (B584, C84400) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (Ni-Cr Plating) 9 Handle Ductile Iron 10 Handle Nut Carbon Steel 16 Name Plate Aluminum 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PTFE
Specifications Approx Net Wt
19.00
Specifications Carton Qty
2
Specifications Class
CSZA
Specifications Dimension D
2.56
Specifications Dimension D1
7.87
Specifications Dimension D1 Max
2.633
Specifications Dimension D1 Min
2.628
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
3.93
Specifications Dimension L
5.43
Specifications Dimension L1
3.51
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body , blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Standard End Connections Threaded ASME B1.20.1 Solder Joint ASME B16.18 Wall Thickness KITZ Standard Conforms to Mss-SP 110 - Replaces us. FED. SPEC.WWW-35B, Type II, Class A, Type 3
