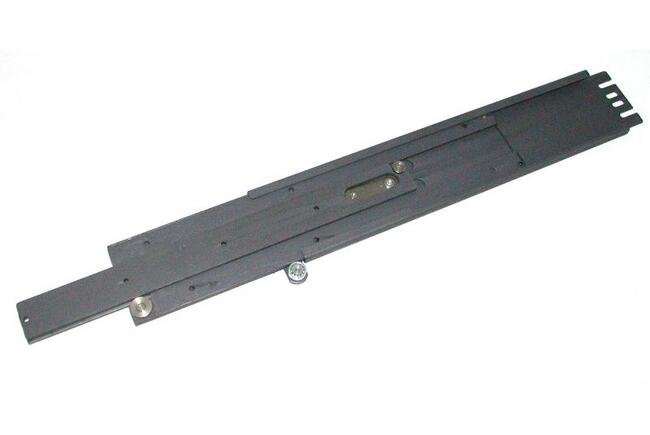

CTHRSNon Pivoting Slide
CTHRSNon Pivoting Slide
SKU:CHA-c35351
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CTHRSNon Pivoting Slide
$49.99
Quantity: 1
Claim Your Seller Account
CTHRSNon Pivoting Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0

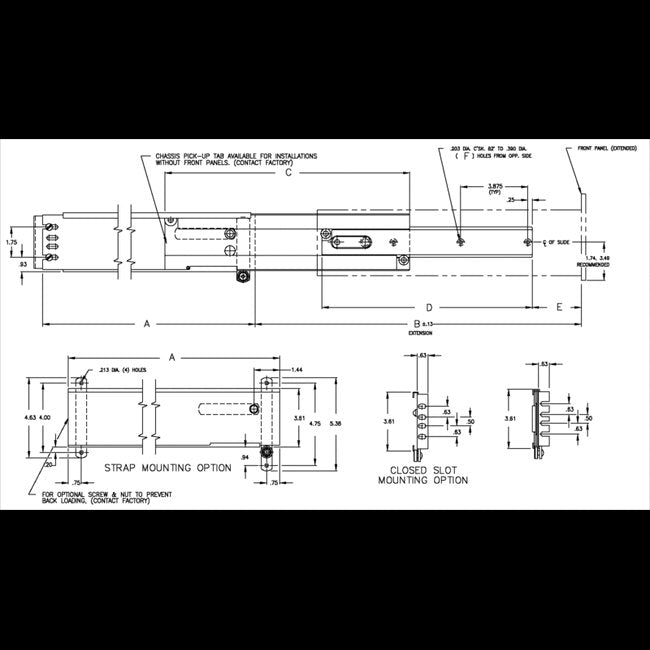

Right hand slide shown, left hand opposite.Finish: All standard slides are coated with Poxylube® dry film lubricant.All standard slides are designed to lock in the extended position.Automatic release is available if lock-out is not desirable.Standard hardware packages include all hardware necessary to mount Chassis Trak® slides:Rear mounting bracketsBar nuts (CA8056-06-0020) #10;-32 x 0.50 F.H.M.S. (flush front rail mounting) #10;-32 x 0.63 B.H.M.S. #10;-32 KEPS® nutsAll sliding members of this slide are made from cold rolled steel.All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be easily removed and replaced.Pickup tab available for units without front panel. Optional mounting patterns, slide lengths and extensions are available.
Specifications Chassis Length D
16.00 in
Specifications Forward Extension B Max
23.63 in
Specifications Forward Extension B Min
21.63 in
Specifications Gdi Reference
CC1904-00-0180
Specifications Installation Sheet
Installation Sheet
Specifications Options
Automatic Release
Specifications Slide Length A
18.00 in
Specifications Spec Sheets
Specification Sheet
Specifications Stationary Section
Closed Slot
Specifications Weight Capacity
275 lbs
Specifications Weight Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
