CuNi Inner Flanges - 14in, DIN 86037

Name: CuNi Inner Flanges - 14in, DIN 86037
Brand: World Wide Metric, Inc.
SKU: FLA-19a090
Price: 119.99 USD
Availability: OutOfStock

SKU:FLA-19a090

Durable CuNi Inner Flanges, 14in Nominal Size, DIN 86037 Compliant

$119.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your piping system with our CuNi10Fe1.6Mn Inner Flanges. These flanges are designed for durability and efficiency, featuring a nominal size of 14 inches and meeting DIN 86037 standards. With a wall thickness of 4.0mm and precise dimensions, they ensure a secure fit. The CuNi material guarantees corrosion resistance and longevity, making these flanges ideal for industrial applications where quality is paramount.

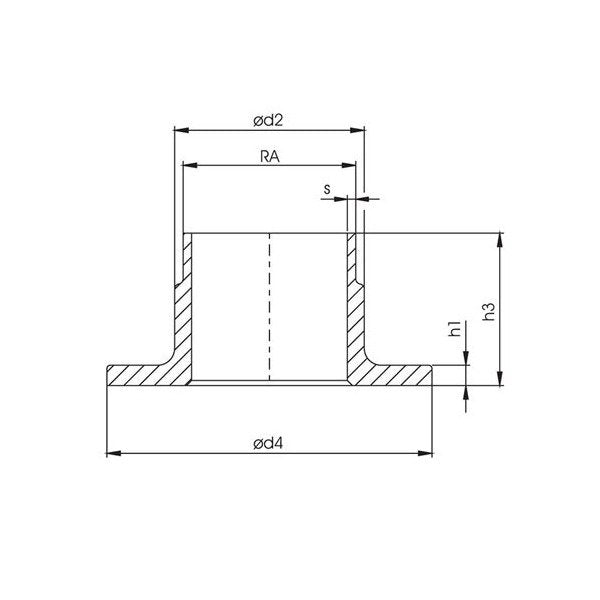

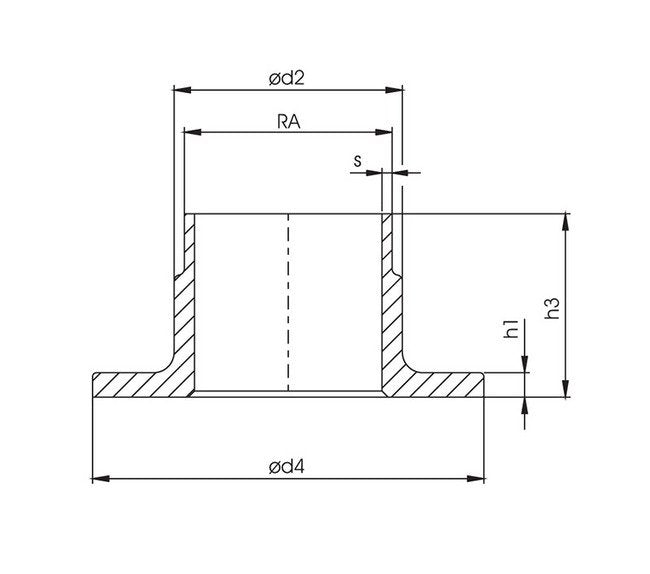

Product Specifications

Specifications Body Material

CuNi10Fe1.6Mn

Specifications D2

371 mm

Specifications D4

430 mm

Specifications H1

11 mm

Specifications H3

50 mm

Specifications Nominal Size

14 in

Specifications Norm

DIN 86037

Specifications Ra Od

368 mm

Specifications S

4.0 mm

Specifications Weight

6.3 kg

CuNi Inner Flanges - 14in, DIN 86037
