CuNi Inner Flanges - 24in, DIN 86037
CuNi Inner Flanges - 24in, DIN 86037
SKU:FLA-cfd414
Premium CuNi Inner Flanges - DIN 86037 Compliant, Ideal for Heavy-duty Applications
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
CuNi Inner Flanges - 24in, DIN 86037
$349.99
Quantity: 1
Claim Your Seller Account
CuNi Inner Flanges - 24in, DIN 86037
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our CuNi Inner Flanges are precision-engineered to meet the demanding requirements of industrial applications. With a nominal size of 24 inches and constructed from high-quality CuNi10Fe1.6Mn material, these flanges ensure superior durability and corrosion resistance. Compliant with DIN 86037 standards, they boast precise dimensions including RA-OD of 610mm, thickness of 4.5mm, and outer diameter of 685mm. Whether for new installations or replacements, these inner flanges guarantee optimal performance in critical environments.

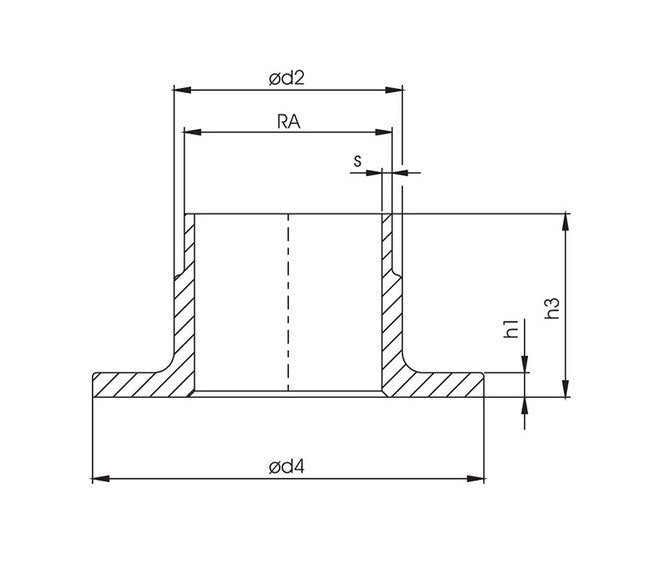

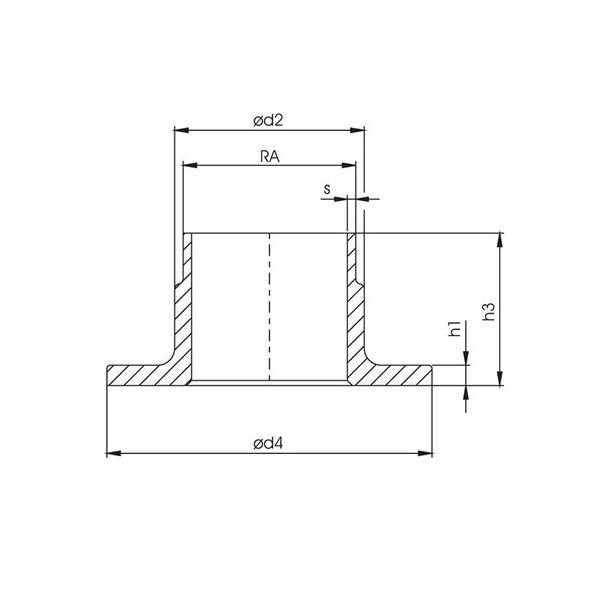

Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
613 mm
Specifications D4
685 mm
Specifications H1
14 mm
Specifications H3
60 mm
Specifications Nominal Size
24 in
Specifications Norm
DIN 86037
Specifications Ra Od
610 mm
Specifications S
4.5 mm
Specifications Weight
14.90 kg
