CuNi Inner Flanges 4 Inch - DIN 86037 Compliant

Name: CuNi Inner Flanges 4 Inch - DIN 86037 Compliant
Brand: World Wide Metric, Inc.
SKU: FLA-ced7d3
Price: 49.99 USD
Availability: OutOfStock

SKU:FLA-ced7d3

High-quality CuNi Inner Flanges - DIN 86037 Compliant, ideal for industrial use.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your piping system with our CuNi Inner Flanges. These precision-engineered flanges are designed to meet the demanding requirements of industrial applications, featuring a Nominal Size of 4 inches and DIN 86037 compliance. With an RA - OD of 108mm and a sturdy Body Material of CuNi10Fe1.6Mn, these flanges ensure reliable performance and longevity. The 2.5mm wall thickness and precise dimensions make them ideal for critical installations, backed by their weight of 1.10 kg for added stability.

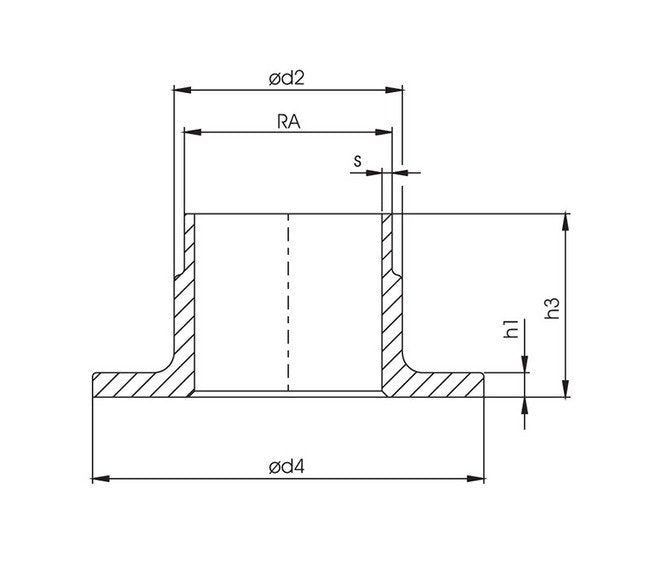

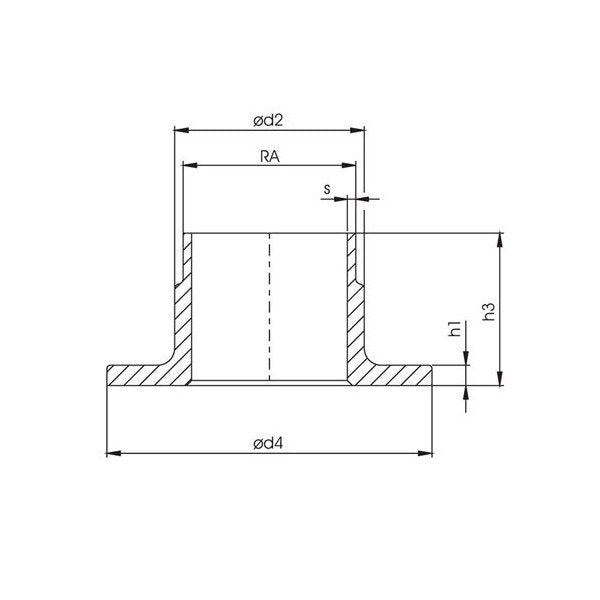

Product Specifications

Specifications Body Material

CuNi10Fe1.6Mn

Specifications D2

110 mm

Specifications D4

158 mm

Specifications H1

7 mm

Specifications H3

50 mm

Specifications Nominal Size

4 in

Specifications Norm

DIN 86037

Specifications Ra Od

108 mm

Specifications S

2.5 mm

Specifications Weight

1.10 kg

CuNi Inner Flanges 4 Inch - DIN 86037 Compliant
