CuNi10Fe1.6Mn Inner Flanges - 1 1/4 in
CuNi10Fe1.6Mn Inner Flanges - 1 1/4 in
SKU:FLA-a6143d
High-quality CuNi10Fe1.6Mn Inner Flanges - Ideal for demanding industrial applications
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CuNi10Fe1.6Mn Inner Flanges - 1 1/4 in
$59.99
Quantity: 1
Claim Your Seller Account
CuNi10Fe1.6Mn Inner Flanges - 1 1/4 in
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CuNi10Fe1.6Mn Inner Flanges in 1 1/4-inch size are expertly crafted to meet DIN 86037 standards, ensuring exceptional quality and precision engineering. With RA-OD of 38.0 mm and a sturdy body material, these flanges are ideal for demanding industrial applications. Featuring a nominal size of 1 1/4 inches, precise dimensions, and a weight of 0.25 kg, these flanges offer reliable performance and durability. Trust in these Inner Flanges for seamless installations and superior compatibility.

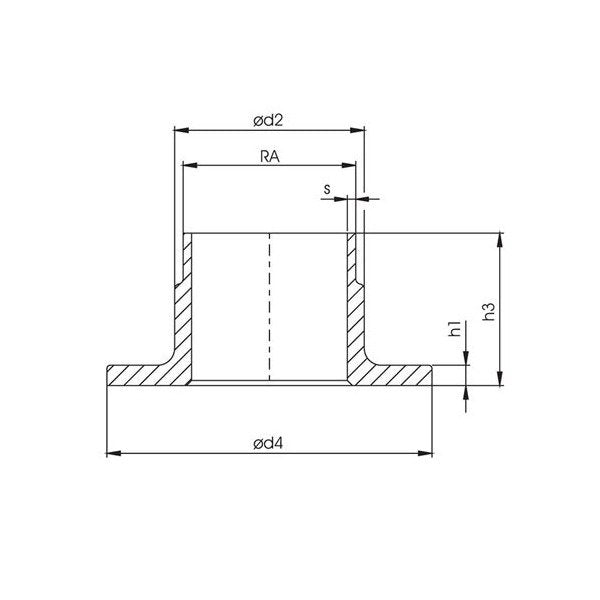

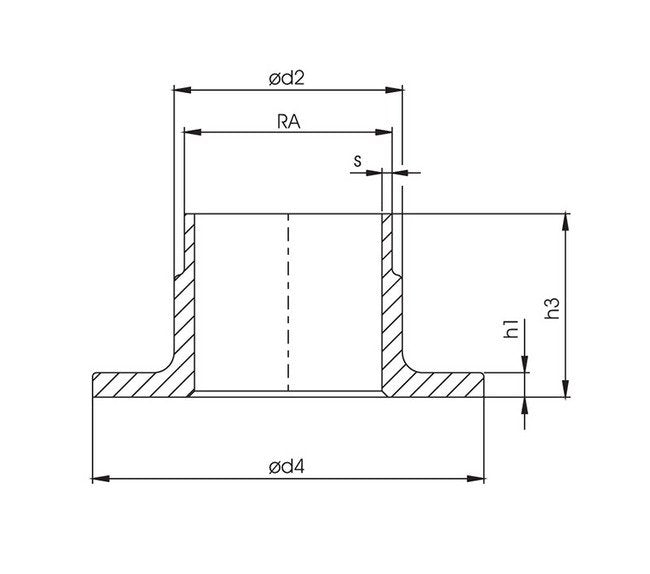

Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
40 mm
Specifications D4
78 mm
Specifications H1
5 mm
Specifications H3
40 mm
Specifications Nominal Size
1 1/4 in
Specifications Norm
DIN 86037
Specifications Ra Od
38.0 mm
Specifications S
1.5 mm
Specifications Weight
0.25 kg
