CuNi10Fe1.6Mn Inner Flanges - 18 inch, DIN 86037 Compliant
CuNi10Fe1.6Mn Inner Flanges - 18 inch, DIN 86037 Compliant
SKU:FLA-42cb7e
Precision-engineered CuNi10Fe1.6Mn Inner Flanges for industrial reliability. Durable design meeting DIN 86037 standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
CuNi10Fe1.6Mn Inner Flanges - 18 inch, DIN 86037 Compliant
$249.99
Quantity: 1
Claim Your Seller Account
CuNi10Fe1.6Mn Inner Flanges - 18 inch, DIN 86037 Compliant
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CuNi10Fe1.6Mn Inner Flanges are precision-engineered to meet the stringent requirements of DIN 86037 standards, ensuring reliability and durability. With a nominal size of 18 inches and a sturdy body material, these flanges guarantee exceptional performance. The inner flanges feature precise dimensions including an OD of 457mm, ensuring a perfect fit. Designed with a wall thickness of 4.0mm, these flanges offer superior strength and corrosion resistance, making them ideal for demanding industrial applications.

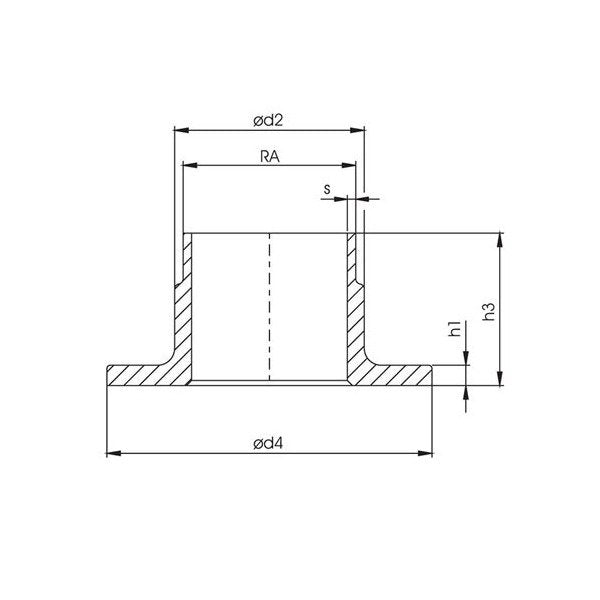

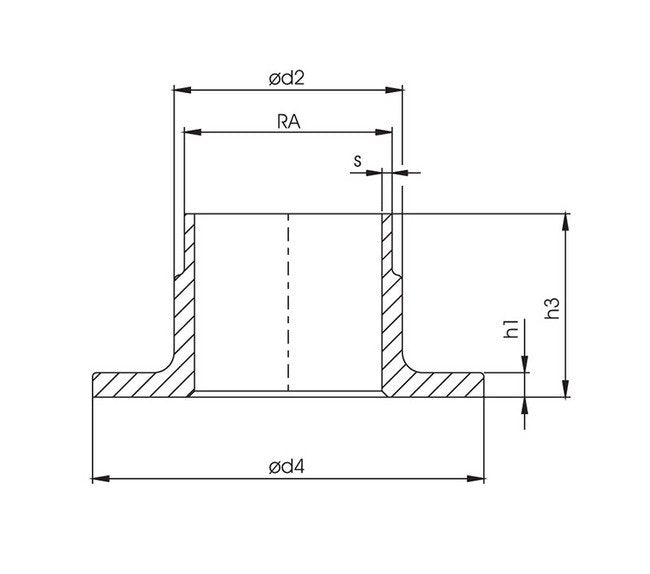

Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
460 mm
Specifications D4
530 mm
Specifications H1
12 mm
Specifications H3
50 mm
Specifications Nominal Size
18 in
Specifications Norm
DIN 86037
Specifications Ra Od
457 mm
Specifications S
4.0 mm
Specifications Weight
9.10 kg
