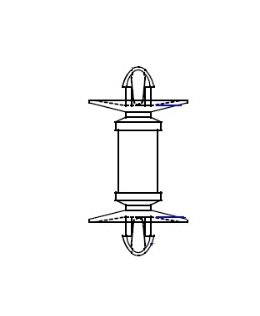

Cupped Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
Cupped Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
SKU:01C-a822bd
Secure and durable Cupped Dual Locking PCB Support for .062 panel thickness, RoHS compliant, ASTM certified.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Cupped Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
$49.99
Quantity: 1
Claim Your Seller Account
Cupped Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 81 Series Cupped Dual Locking PCB Support is designed for .062 panel thickness, ensuring a secure hold for circuit boards. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and meets ASTM D 4066 and PA0113 standards. With a temperature range of -40 to 185F (-40 to 85C), it offers reliable performance in various environments. Each pack contains 1000 supports for convenient bulk installation, providing an efficient solution for PCB mounting applications.

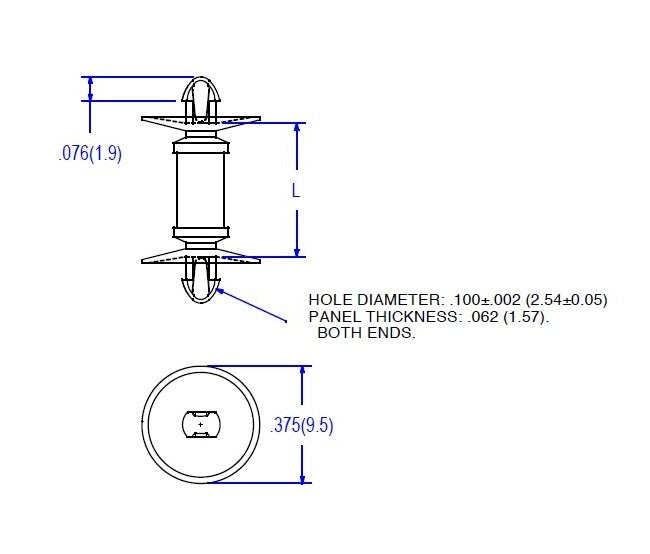

Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
