CV-40-165 Dual Voltage Capacitor Start Motor Switch
CV-40-165 Dual Voltage Capacitor Start Motor Switch
SKU:MOT-91f534
Enhance motor performance with the CV-40-165 Dual Voltage Capacitor Start Switch. UL/CSA certified for reliable operation in diverse environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CV-40-165 Dual Voltage Capacitor Start Motor Switch
$49.99
Quantity: 1
Claim Your Seller Account
CV-40-165 Dual Voltage Capacitor Start Motor Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

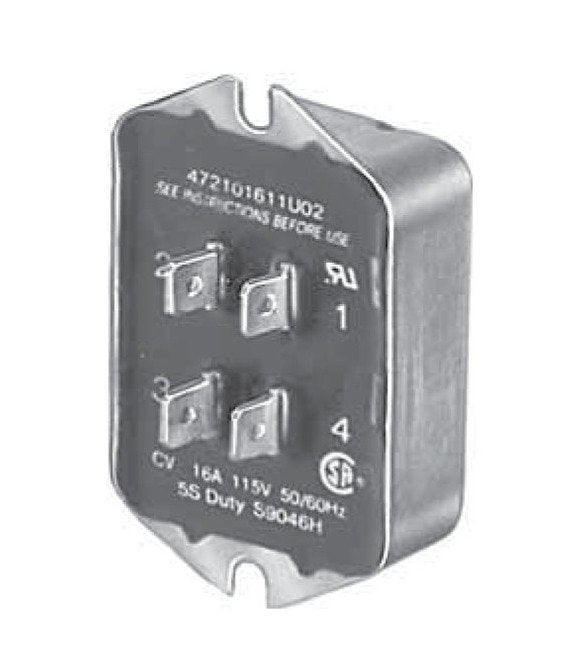

Upgrade your motor's start operation with the CV-40-165 Dual Voltage Capacitor Start Motor Switch. This solid state switch efficiently controls the start circuit, ensuring smooth acceleration and reliable performance. It features a Typical Maximum Motor of 1/2 hp, a Start Circuit Voltage of 115V, and a Switch Rating Permissible Max Start Winding Current of 16A. With UL and CSA certifications, this switch is designed to operate between -40°C to 65°C (-40°F to 149°F), making it suitable for various industrial applications. Trust the CV-40-165 for dependable motor start control that meets rigorous industry standards.
Product Specifications
Additional Features 0

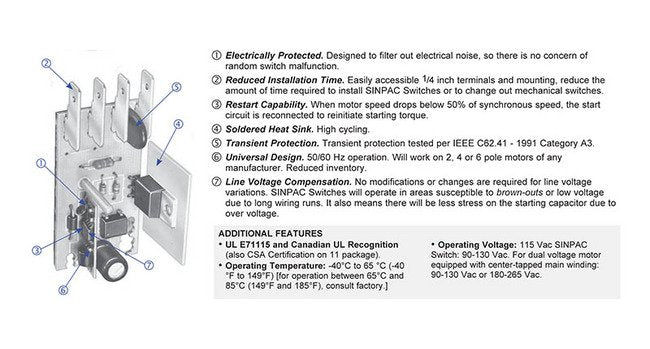

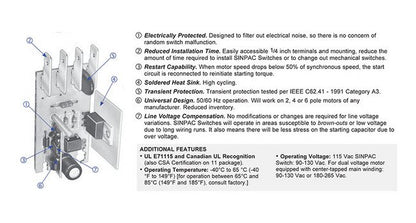

UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD
Specifications Package Style
11 | 20
Specifications Part Number
4-7-21016-11-U02 | 4-7-21016-20-U01
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
16 A

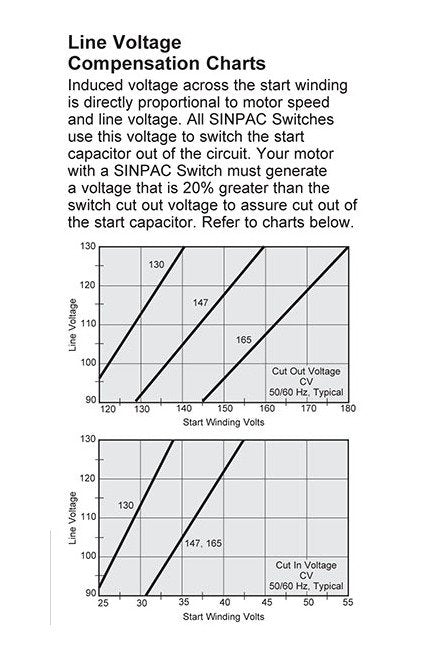

Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
165 V
Specifications Full Load Motor Current Rating 115230 Vol
8/4 A
Specifications Full Load Motor Current Rating 115 Volts
8 A
Specifications Maximum Motor
1/2 hp
