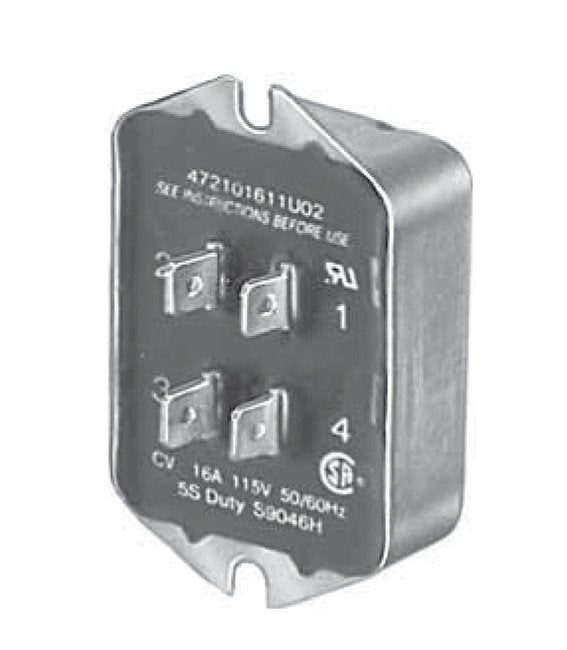

CV-40-165 Dual Voltage Capacitor Start Switch
CV-40-165 Dual Voltage Capacitor Start Switch
SKU:MOT-87c4e6
Enhance motor efficiency with the CV-40-165 Dual Voltage Capacitor Start Switch. UL and CSA certified for safety and reliability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
CV-40-165 Dual Voltage Capacitor Start Switch
$34.99
Quantity: 1
Claim Your Seller Account
CV-40-165 Dual Voltage Capacitor Start Switch
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

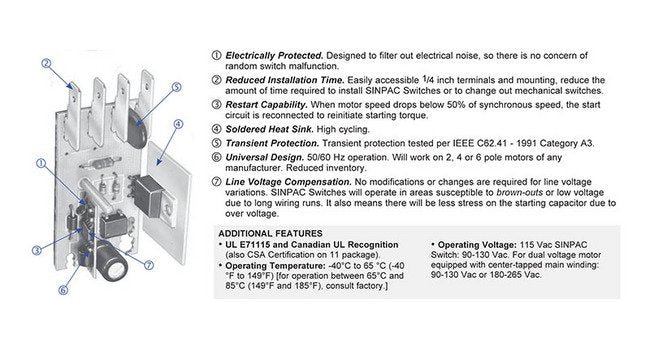

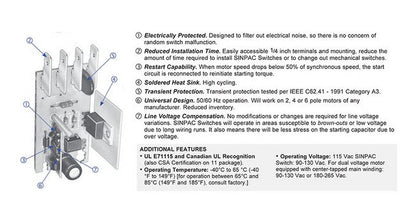

Upgrade your motor's performance with the CV-40-165 Dual Voltage Capacitor Start Switch. This solid-state switch is designed for 1 hp motors, offering a reliable solution with a permissible max start winding current of 25 A. With UL and CSA certifications, this switch ensures safe operation and longevity within a wide temperature range. Its dual voltage capability and precise cut-in and cut-out voltages make it suitable for various applications, providing efficient motor control and protection.
Product Specifications
Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD

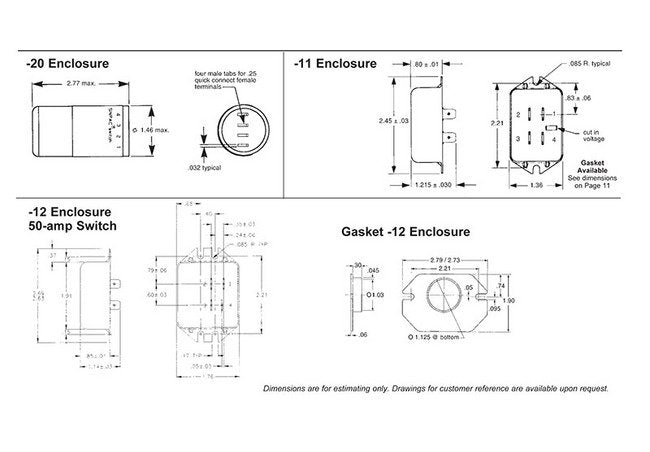

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21025-11-U02 | 4-7-21025-20-U01
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
25 A

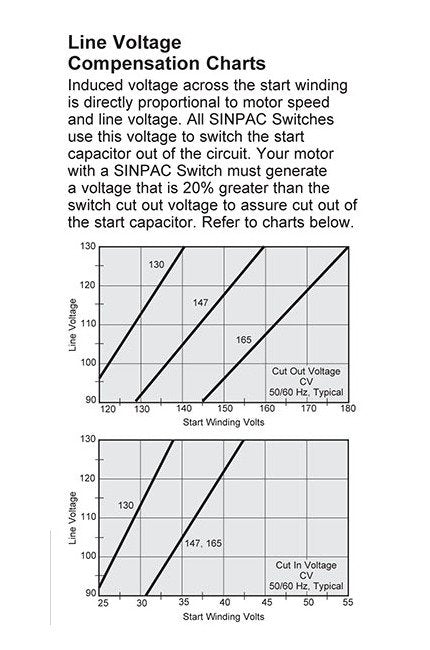

Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
165 V
Specifications Full Load Motor Current Rating 115230 Vol
12/6 A
Specifications Full Load Motor Current Rating 115 Volts
12 A
Specifications Maximum Motor
1 hp
