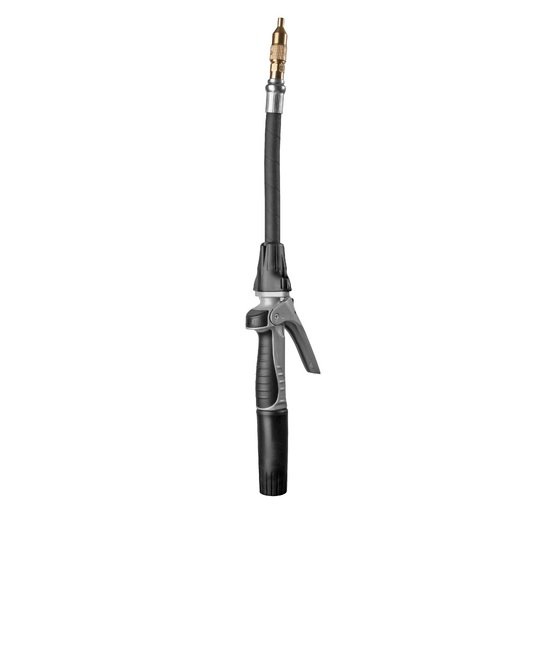

CV11 Series 1/4 Inch Narrow No-Drip Formable Oil Control Valve

Name: CV11 Series 1/4 Inch Narrow No-Drip Formable Oil Control Valve
Brand: Northern Lights Industrial Supply
SKU: SAM-cb15f6
Price: 79.99 USD
Availability: OutOfStock

SKU:SAM-cb15f6

Achieve precise fluid control with the CV11 Series 1/4 Inch Oil Control Valve. Max flow rate 11 gpm, max pressure 1,450 psi, ideal for automotive and industrial use.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience precise fluid dispensing with the CV11 Series 1/4 Inch Narrow No-Drip Formable Oil Control Valve from Northern Lights Industrial Supply. This valve offers a maximum free flow rate of 11 gpm, maximum working pressure of 1,450 psi, and is compatible with various fluids including antifreeze solutions, ATF, gear oil, and hydraulic fluids. Ideal for car dealerships, maintenance shops, fleet services, and more.

Product Specifications

Application Application

Car and Truck Dealerships | Fast Lube and Maintenance Shops | Fleet Service | Lube Trucks | Mining and Construction

Specifications Fluid Handled

Antifreeze Solutions | Automatic Transmission Fluid (ATF) | Gear Oil | Hydraulic Oil and Fluids | Synthetic and Mineral Based Oil

Specifications Fluid Inlet Thread Size

1/2 in

Specifications Fluid Inlet Thread Type

National Pipe Taper Fuel (NPTF)

Specifications Fluid Outlet Thread Size

1/2 in

Specifications Fluid Outlet Thread Type

National Pipe Taper Fuel (NPTF)

Specifications Maximum Free Flow Rate

11 gpm | 40 L/min

Specifications Maximum Working Pressure

1,450 psi | 100 bar

Specifications Turn Size

1/4 in

Specifications Wetted Materials

Aluminum | Polyamide | Thermoplastic Polyurethanes (TPU) | Zinc Plated Steel

CV11 Series 1/4 Inch Narrow No-Drip Formable Oil Control Valve
