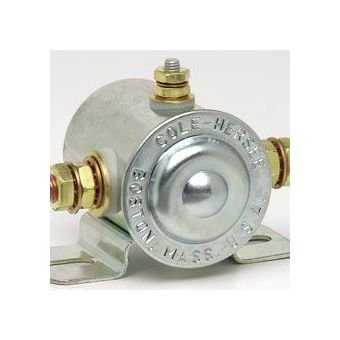

CVP 12V Grounded Continuous Duty SPST Solenoid
CVP 12V Grounded Continuous Duty SPST Solenoid
SKU:CVP-eb95aa
Reliable CVP 12V Grounded SPST Solenoid with plated steel housing and nickel-plated brass components. Ideal for government and commercial use.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CVP 12V Grounded Continuous Duty SPST Solenoid
$59.99
Quantity: 1
Claim Your Seller Account
CVP 12V Grounded Continuous Duty SPST Solenoid
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your remote-acting switch systems with the CVP 12V Grounded Continuous Duty Single Pole Single Throw (SPST) Solenoid. With a voltage range of 12V, 24V, and 36V, a current rating up to 25A, and a housing of plated steel with PVC coating, this solenoid ensures reliable performance in various applications. The nickel-plated brass components and copper/silver contact materials guarantee durability and efficient conductivity. Designed to meet institutional procurement standards, the CVP Solenoid is an ideal choice for government projects and commercial applications.
Product Specifications
Additional Information Additional Information
Housing Materials: Plated Steel. PVC Coated. Contact Materials: Copper, Above 200 A - Silver. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24 Threads. Hex nuts and lock washers included. Coil Stud Material: Steel. Coil Stud Threads: 10-32. He
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Cap Material
Plated Steel
Specifications Coating
Polyvinyl Chloride (PVC)
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Material Above 200 Ampere A Current
Silver
Specifications Contact Stud Material
Copper
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
200 A | 65 A | 85 A
Specifications Current At 12 Volt V Voltage
25 A
Specifications Current At 24 Volt V Voltage
15 A
Specifications Current At 36 Volt V Voltage
10 A
Specifications Direct Current Dc Voltage
12 V | 24 V | 36 V
Specifications Handle Length
11/16 in | 17.5 mm
Specifications Handle Material
Nickel Plated Brass
Specifications Handle Type
Standard | Toggle
Specifications Housing
Plated Steel
Specifications Mounting Hardware
Nickel Plated Brass Face Nut
Specifications Mounting Stem Material
Nickel Plated Brass
Specifications Number Of Terminals
2
Specifications Panel Thickness
0 to 1/4 in | 6.35 mm
Specifications Terminal Type
Screw
Specifications Type
Single Pole Single Throw (SPST)
