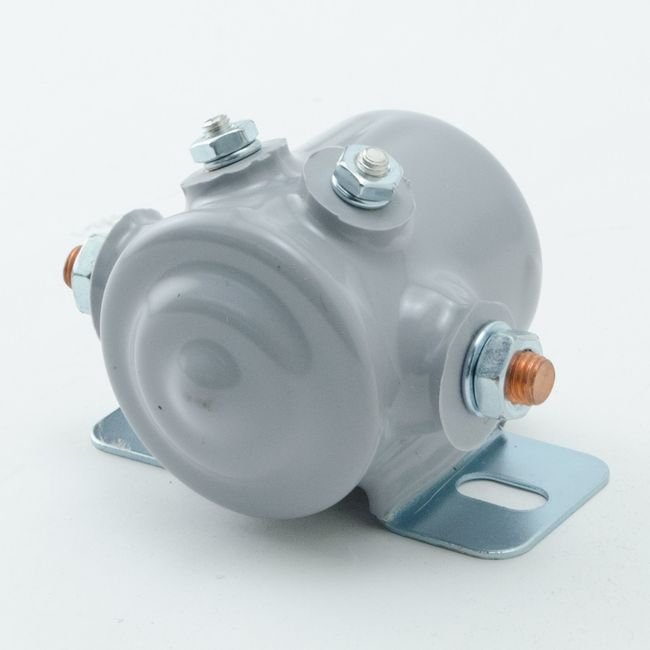

CVP 12V Insulated Continuous Duty SPST Solenoid

Name: CVP 12V Insulated Continuous Duty SPST Solenoid
Brand: Marsh Electronics, Inc.
SKU: CVP-80c141
Price: 89.99 USD
Availability: OutOfStock

SKU:CVP-80c141

High-performance 12V SPST solenoid for reliable switching solutions. Plated steel housing, copper/silver contacts, ideal for 200A current applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your relay system with the CVP 12V Insulated Continuous Duty Single Pole Single Throw (SPST) Solenoid. This high-quality solenoid features a durable plated steel housing with PVC coating, copper and silver contact materials, and reliable steel coil stud. With a current rating up to 200A, this solenoid ensures efficient and safe operation. Perfect for various applications requiring a 12V DC voltage single pole single throw circuitry.

Product Specifications

Additional Information Additional Information

Housing Materials: Plated Steel. PVC Coated. Contact Materials: Copper, Above 200 A - Silver. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24 Threads. Hex nuts and lock washers included. Coil Stud Material: Steel. Coil Stud Threads: 10-32. He

Specifications Bracket Mounting Hole Dimensions

5/16 x 19/32 in | 7.9 x 15.1 mm

Specifications Coating

Polyvinyl Chloride (PVC)

Specifications Coil Stud Material

Steel

Specifications Coil Stud Thread Size

10-32 in

Specifications Contacts

Normally Open (NO)

Specifications Contact Material

Copper

Specifications Contact Material Above 200 Ampere A Current

Silver

Specifications Contact Stud Material

Copper

Specifications Contact Stud Thread Size

5/16-24 in

Specifications Current

200 A | 65 A | 85 A

Specifications Direct Current Dc Voltage

12 V

Specifications Housing

Plated Steel

Specifications Type

Single Pole Single Throw (SPST)
