CVP 12V SPST Solenoid Switch
CVP 12V SPST Solenoid Switch
SKU:CVP-5c92e9
Reliable CVP 12V SPST Solenoid Switch for high-current applications. Durable construction for lasting performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CVP 12V SPST Solenoid Switch
$59.99
Quantity: 1
Claim Your Seller Account
CVP 12V SPST Solenoid Switch
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

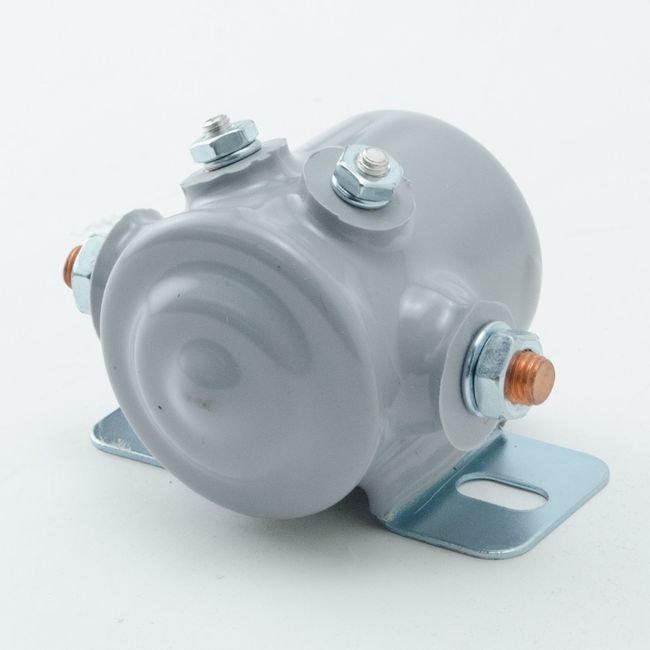

The CVP 12 Volt Insulated Continuous Duty Single Pole Single Throw (SPST) Solenoid is a reliable remote-acting switch designed by Littelfuse. With a sturdy Plated Steel housing and high-quality Copper and Silver contact materials, this solenoid can handle current up to 200 A. Its 5/16-24 inch contact stud threads ensure secure connections, while the Steel coil stud threads maintain durability. Ideal for various applications, this solenoid guarantees efficient performance and longevity.
Product Specifications
Additional Information Additional Information
Housing Materials: Plated Steel. PVC Coated. Contact Materials: Copper, Above 200 A - Silver. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24. Threads hex nuts and lock washers included. Coil Stud Material: Steel Coil Stud Threads: 10-32. Hex
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Material Above 200 Ampere A Current
Silver
Specifications Contact Stud Material
Copper
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
200 A | 65 A | 85 A
Specifications Direct Current Dc Voltage
12 V
Specifications Housing
Plated Steel
Specifications Type
Single Pole Single Throw (SPST)
