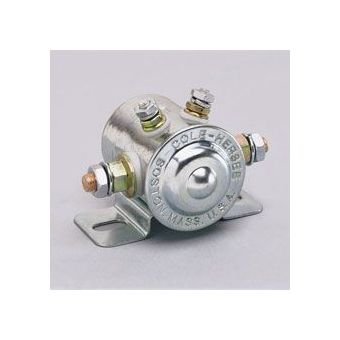

The CVP 12V Voltage Insulated Continuous Duty Single Pole Single Throw (SPST) Solenoid is a reliable remote-acting switch designed to meet a broad range of application requirements. With Copper and Silver contact materials, Plated Steel housing, and PVC coating, this solenoid ensures durability and efficient operation. Rated for 200A current, this solenoid is ideal for applications demanding high performance and precision. The included hex nuts and lock washers make installation hassle-free, catering to both consumer and institutional procurement needs.
Product Specifications
Additional Information Additional Information
Housing Materials: Plated Steel. PVC Coated. Contact Materials: Copper, Above 200 A - Silver. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24 Threads. Hex nuts and lock washers included. Coil Stud Material: Steel. Coil Stud Threads: 10-32. He
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Coating
Polyvinyl Chloride (PVC)
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Material Above 200 Ampere A Current
Silver
Specifications Contact Stud Material
Copper
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
200 A | 65 A | 85 A
Specifications Direct Current Dc Voltage
12 V
Specifications Housing
Plated Steel
Specifications Type
Single Pole Single Throw (SPST)
