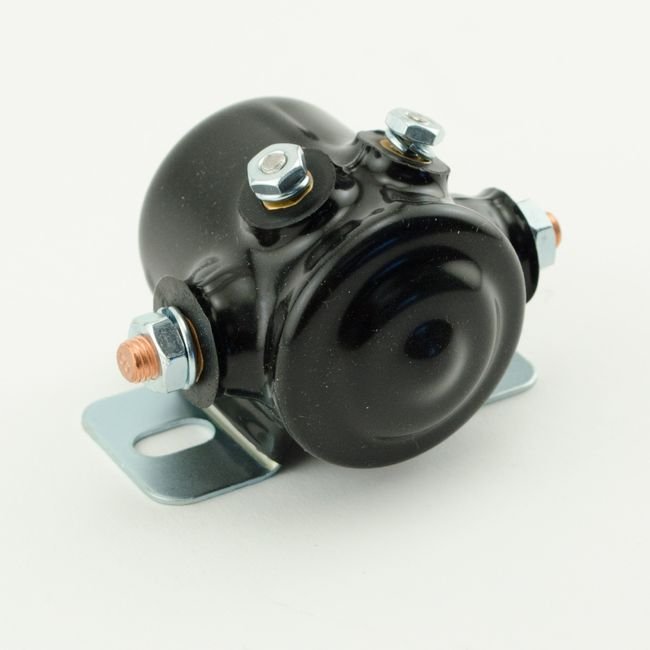

CVP 24V Voltage Insulated SPST Solenoid
CVP 24V Voltage Insulated SPST Solenoid
SKU:CVP-01a78c
Reliable CVP 24V Voltage Insulated Solenoid with SPST Circuitry & 200A Capacity for Various Applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
CVP 24V Voltage Insulated SPST Solenoid
$59.99
Quantity: 1
Claim Your Seller Account
CVP 24V Voltage Insulated SPST Solenoid
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CVP 24V Voltage Insulated Continuous Duty SPST Solenoid by Littelfuse is a reliable remote-acting switch suitable for diverse applications. With a robust plated steel housing, PVC coating, and copper contacts (silver above 200A), this solenoid ensures efficient electrical conductivity and durability. The 24V DC voltage, SPST circuitry, and 200A current capacity make it ideal for high-demand environments. The included coil stud and bracket mounting hardware simplify installation, making it a convenient choice for both consumer and institutional needs.
Product Specifications
Additional Information Additional Information
Housing Materials: Plated Steel. PVC Coated. Contact Materials: Copper, Above 200 A - Silver. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24 Threads. Hex nuts and lock washers included. Coil Stud Material: Steel. Coil Stud Threads: 10-32. He
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Coating
Polyvinyl Chloride (PVC)
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Material Above 200 Ampere A Current
Silver
Specifications Contact Stud Material
Copper
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
200 A | 65 A | 85 A
Specifications Direct Current Dc Voltage
24 V
Specifications Housing
Plated Steel
Specifications Type
Single Pole Single Throw (SPST)
