CVP 7 Pole Socket Self-Grounding Connector
CVP 7 Pole Socket Self-Grounding Connector
SKU:CVP-887c5a
The rugged CVP 7 Pole Socket Self-Grounding Connector ensures reliable connection for tractor trailers, meeting industry standards for performance and compatibility.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CVP 7 Pole Socket Self-Grounding Connector
$24.99
Quantity: 1
Claim Your Seller Account
CVP 7 Pole Socket Self-Grounding Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

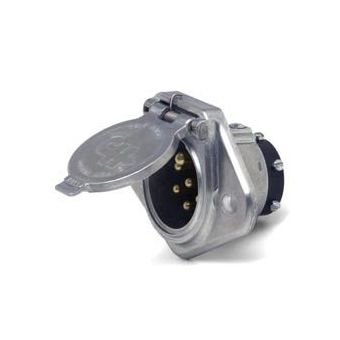

The CVP 7 Pole Socket Self-Grounding Connector is a rugged and durable solution for tractor trailers. Constructed with a Die Cast Zinc housing and Brass terminals, this connector is designed for reliable performance. It features oval mounting holes measuring 0.488 x 0.325 inches (12.4 x 8.3 mm) on 2.93-inch centers, suitable for 8 to 10 AWG wire sizes. Compliant with ATA RCCC (RP-102), SAE J560b, FMVSS-121, FIEI TTMA RP40-73 standards, this connector assures compatibility and reliability on the road. It is also compatible with other J560b connectors for seamless integration.
Product Specifications
Accessories Accessories

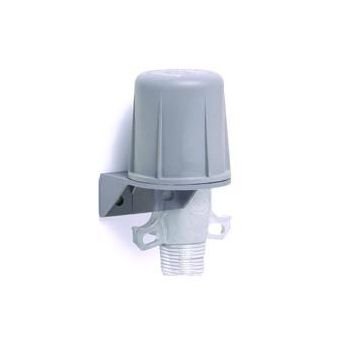

Item # - 11750Item Name - Stor-A-Way Plug Holder (Accessories for Vehicle Connectors)Description - For attachment of 4, 6, and 7-pole sockets of standard design (without integral circuit breakers). Cole Hersee patent. Keeps plugs clean when not in use and extends life by protecting electrical contacts from dirt and road splash. For 7 pole and 13 pole plugs. Spring-loaded for secure locking. Heavy duty glass-filled plastic housing.Color - GrayHousing - Engineered ThermoplasticMaterial - Glass Filled Plastic
Specifications Housing
Die Cast Zinc
Specifications Mounting Hole Shape
Oval
Specifications Mounting Hole Size
0.488 x 0.325 in | 12.4 x 8.3 mm
Specifications Number Of Poles
7
Specifications Series
7 Pole Tractor Trailer Connectors
Specifications Terminal Material
Brass
Specifications Wire Size
8 to 10 AWG
