CVP Battery Disconnect Switch with Plated Steel Case

Name: CVP Battery Disconnect Switch with Plated Steel Case
Brand: Marsh Electronics, Inc.
SKU: CVP-f70287
Price: 89.99 USD
Availability: OutOfStock

SKU:CVP-f70287

Get superior battery circuit control with the CVP Battery Disconnect Switch. 6-36V DC, 2000A intermittent, 300A continuous. Durable plated steel case, lever actuator, reliable performance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

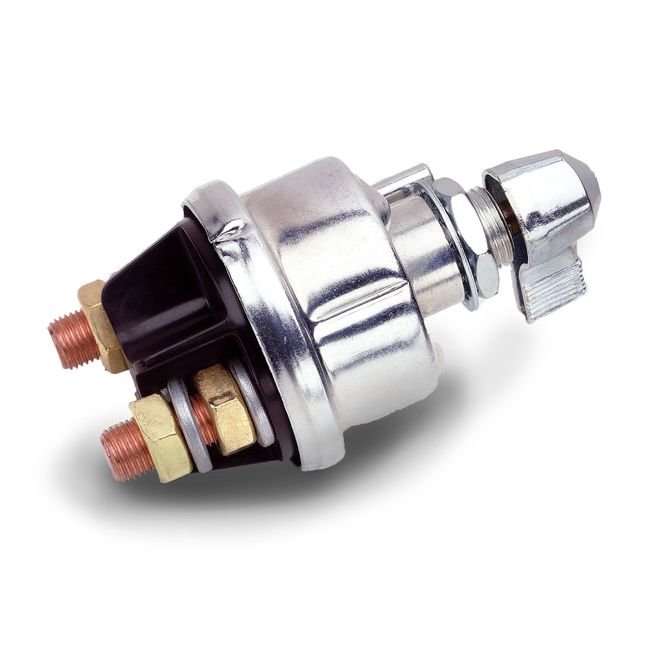

The CVP Battery Master Disconnect Switch with a Plated Steel Case is designed to efficiently disconnect battery circuits, ensuring safety and control. With a voltage range of 6-36 V DC, it offers an intermittent current rating of 2000A and a continuous current rating of 300A, making it ideal for demanding applications. The switch features a durable plated steel case, copper contact material, and two 1/2-20 copper stud terminals, guaranteeing reliability and longevity. Its lever actuator allows for easy operation, while the sealed construction provides protection against environmental elements. This switch meets stringent industry standards, making it a trusted choice for both consumer and institutional buyers.

Product Specifications

Accessories Accessories

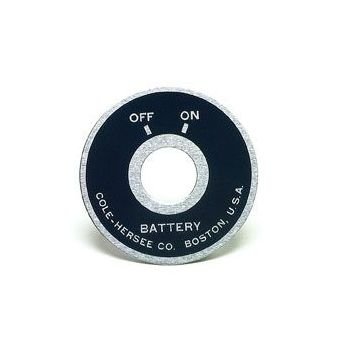

Item # - 82065Item Name - Faceplate for Master Disconnect SwitchesDescription - 82065 Faceplate without indexing hole for metal case battery disconnect switches without indexing pin. Polished aluminum with enamel finish 2-1/2 (63.5 mm) diameter. 82065-02 faceplate with indexing pin.

Specifications Actuator Type

Lever

Specifications Case Material

Plated Steel

Specifications Contact Material

Copper

Specifications Continuous Current Rating

300 A

Specifications Direct Current Dc Voltage

6 to 36 V

Specifications Installation Hole Size

3/4 in

Specifications Intermittent Current Rating

2000 A

Specifications Mounting Stem Thread Size

3/4-16 in

Specifications Number Of Stud Terminals

Specifications Panel Thickness

1/4 in

Specifications Stud Terminal Diameter

1/2-20 in

Specifications Stud Terminal Material

Copper
