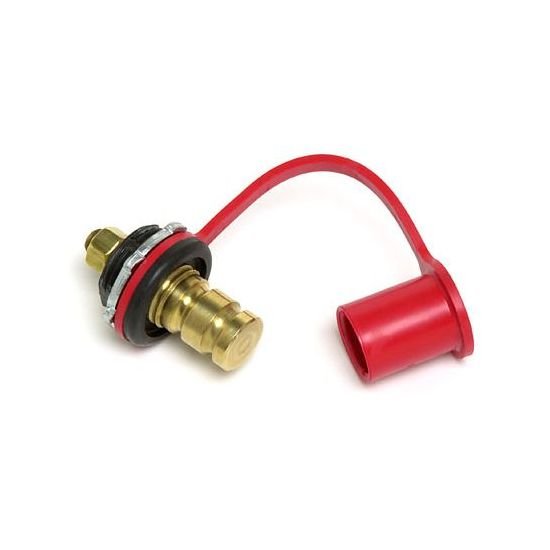

CVP Battery Jumper Terminal and Stud with High Amperage Capacity
CVP Battery Jumper Terminal and Stud with High Amperage Capacity
SKU:CVP-e9e310
High-performance CVP Battery Jumper Terminal for heavy-duty applications, 285A capacity, PBT Insulator, Brass Stud, Copper 110 Contact, V0-V2 Flammability Rating
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CVP Battery Jumper Terminal and Stud with High Amperage Capacity
$24.99
Quantity: 1
Claim Your Seller Account
CVP Battery Jumper Terminal and Stud with High Amperage Capacity
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CVP Battery Jumper Terminal and Stud are designed to meet the demanding power needs of heavy-duty applications. Capable of handling up to 285A continuous current with a 120 mm² cable, these terminals ensure reliable power connections. The brass stud terminal with Copper 110 contact material guarantees optimal conductivity. The insulator is crafted from Polybutylene Terephthalate (PBT) with a V0-V2 flammability rating for enhanced safety. With a temperature rise from 55.6º C to 67º C using 0 AWG cable, these terminals excel in efficiency and durability.
Product Specifications
Specifications Cable Size
120 mm²
Specifications Case Material
Nylon 66
Specifications Contact Material
Copper 110
Specifications Continuous Current
285 A
Specifications Direct Current Dc Voltage
6 to 36 V
Specifications Do Not Exceed Torque
13.5 N·m
Specifications Installation Hole Size
1.312 in | 33.32 mm
Specifications Insulator Flammability Rating
V0-V2 Underwriters' Laboratory (UL94)
Specifications Insulator Material
Polybutylene Terephthalate (PBT)
Specifications Rating
Extra Heavy Duty
Specifications Stud Terminal Material
Brass
Specifications Stud Terminal Size
0.57 in | 14.48 mm
Specifications Stud Terminal Thread Size
3/8-16 in
