CVP Battery Master Disconnect Switch - Plated Steel Case
CVP Battery Master Disconnect Switch - Plated Steel Case
SKU:CVP-3e6634
Reliable CVP Battery Master Disconnect Switch for 6-36V DC systems, meets UL Listed 375M standards. Durable plated steel case.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
CVP Battery Master Disconnect Switch - Plated Steel Case
$45.99
Quantity: 1
Claim Your Seller Account
CVP Battery Master Disconnect Switch - Plated Steel Case
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

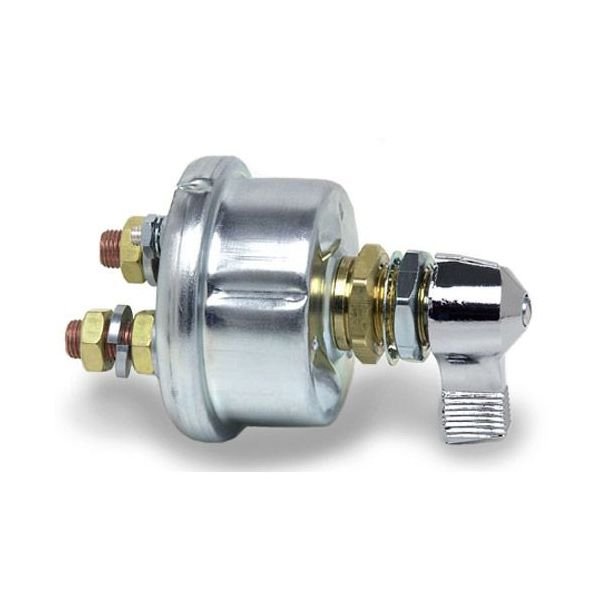

The CVP Battery Master Disconnect Switch in a plated steel case is a reliable solution for 6-36V DC systems. This SPST switch offers two positions - Off-On, with electrical ratings that meet UL Listed 375M standards. With a sturdy brass mounting stem, silver contacts, and two 3/8-24 studs, this switch is designed for durability and efficiency. It fits panels up to 3/16in thick and is suitable for both intermittent and continuous switching applications.
Product Specifications
Accessories Accessories

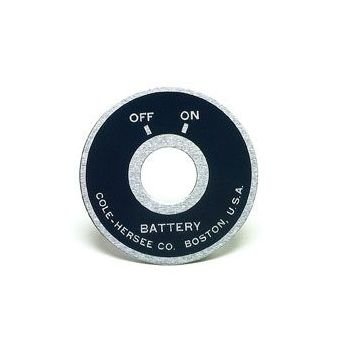

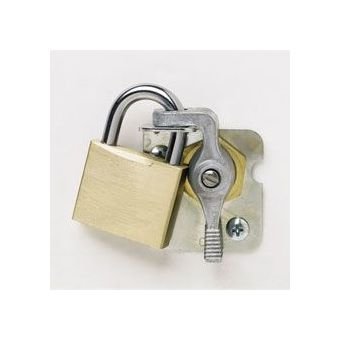

Item # - 82065Item Name - Faceplate for Master Disconnect SwitchesDescription - 82065 Faceplate without indexing hole for metal case battery disconnect switches without indexing pin. Polished aluminum with enamel finish 2-1/2 (63.5 mm) diameter. 82065-02 faceplate with indexing pin.Item # - 24505Item Name - Lockout Lever Kit for Master Disconnect SwitchesDescription - 24505 Lockout Lever Kit suitable for use with Cole Hersee brand lever actuated metal case master disconnect switches on applications needing a padlock to securely lock a Disconnect Switch in the Off position which is required by many lock-out/tag-out safety regulations. For use with Cole Hersee lever actuated master disconnect switches with a 3/4 diameter (19.1 mm) mounting stem: 2484, 2484-A, 2484-06, 2484-09, 2484-16, 75903, 75904, 75904-01, M-284, M-284-A, M-284-01, M-284-02, M-289, M-290, M-290-01, M-290-05. We recommend the use of a padlock with a 5/16 (7.9 mm) diameter shackle.
Specifications Case Material
Plated Steel
Specifications Contact Material
Silver
Specifications Continuous Current Rating
800 A
Specifications Continuous Switching Current At 12 Volts V Direct
20 A
Specifications Continuous Switching Current At 6 Volts V Direct
40 A
Specifications Direct Current Dc Voltage
6 to 36 V
Specifications Installation Hole Size
3/4 in
Specifications Intermittent Current Rating
175 A
Specifications Intermittent Switching Current At 12 Volts V Dire
125 A
Specifications Intermittent Switching Current At 6 Volts V Direc
250 A
Specifications Mounting Stem Length
23/32 in | 18.3 mm
Specifications Mounting Stem Material
Brass
Specifications Mounting Stem Thread Size
3/4-16 in
Specifications Number Of Stud Terminals
2
Specifications Panel Thickness
3/16 in
Specifications Stud Terminal Diameter
3/8-24 in
Specifications Type
Single Pole Single Thrust (SPST)
