CVP Fuse Holder - Battery Terminal Mount 2 or 3 Outputs
CVP Fuse Holder - Battery Terminal Mount 2 or 3 Outputs
SKU:CVP-f65e9d
High-quality CVP Fuse Holder for post style battery terminals. Available in 2 or 3 outputs. Max throughput: 275A. Easy and secure assembly.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CVP Fuse Holder - Battery Terminal Mount 2 or 3 Outputs
$29.99
Quantity: 1
Claim Your Seller Account
CVP Fuse Holder - Battery Terminal Mount 2 or 3 Outputs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

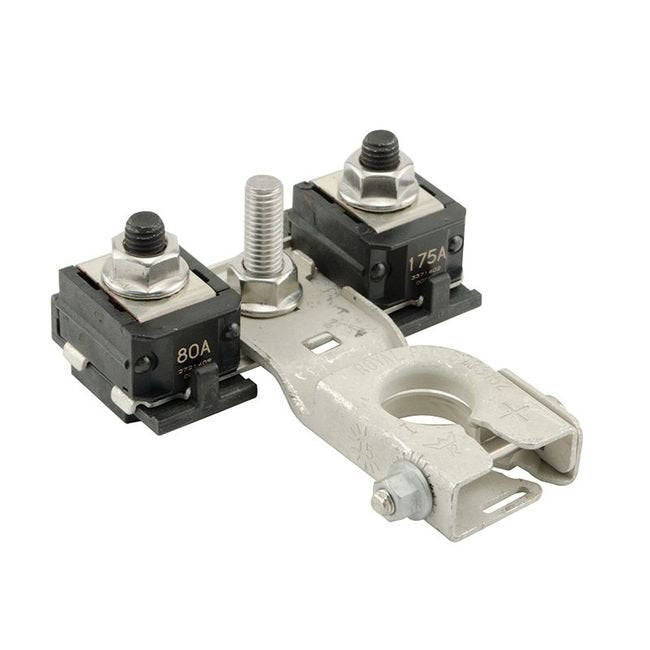

The CVP Fuse Holder is a high-quality z-case fuse holder designed for direct mounting to post style battery terminals. Available in 2 or 3 output designs, it can accommodate z-case fuses ranging from 40-600A, with a maximum continuous throughput of 275A. With precise torque specifications of 14 N·m ± 2 N·m, assembly is straightforward, ensuring secure connections for optimal performance. Ideal for applications requiring reliable fuse protection and easy installation.
Product Specifications
Assembly Instructions Assembly Instructions
Place the battery terminal on the stud & bus bar assemblyFor 2 positions bolt the two pieces togetherPlace Z-case fuses over studsMount the assembly to the batteryAttach cables with ring terminals over the top of the fuses onto the studsThread nuts and lock washers to the top of the studs and torque to 14 ± 2 N·m
Specifications Component Part Numbers Sold Separately
882-854 - 2-Way Bus Bar and Studs (M8 Nuts Not Included)
Specifications Torque
14 N·m
Specifications Torque Tolerance
2 N·m
