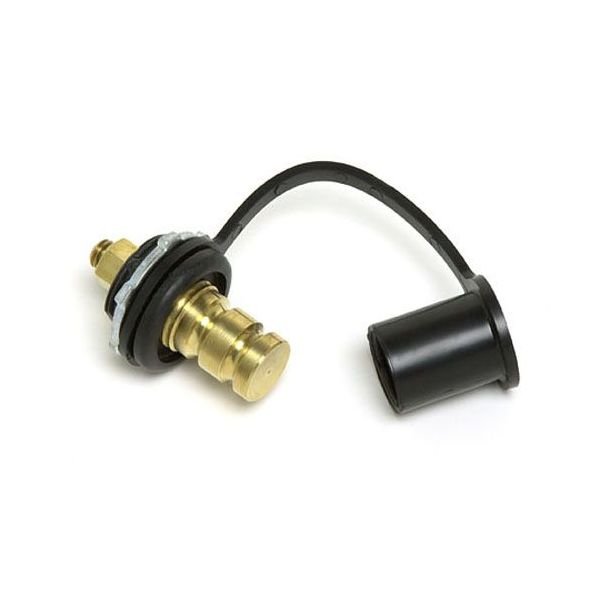

CVP Heavy Duty Battery Jumper Terminal and Stud
CVP Heavy Duty Battery Jumper Terminal and Stud
SKU:CVP-04979d
High-performance CVP Battery Jumper Terminal and Stud for 285A continuous current handling. Safe, durable, and reliable for heavy-duty applications.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
CVP Heavy Duty Battery Jumper Terminal and Stud
$35.99
Quantity: 1
Claim Your Seller Account
CVP Heavy Duty Battery Jumper Terminal and Stud
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CVP Heavy Duty Battery Jumper Terminal and Stud are precision-engineered for maximum power transfer and durability. With a continuous current handling of 285 A, these terminals are designed to meet the demanding needs of both consumer and institutional users. The copper 110 contact material ensures optimal conductivity, while the brass stud terminal provides a secure connection. The insulator, made of Polybutylene Terephthalate (PBT) with a V0-V2 UL94 flammability rating, offers exceptional safety. Suitable for cable sizes up to 120 mm², this terminal is ideal for heavy-duty applications where reliability is paramount.
Product Specifications
Specifications Cable Size
120 mm²
Specifications Case Material
Nylon 66
Specifications Contact Material
Copper 110
Specifications Continuous Current
285 A
Specifications Direct Current Dc Voltage
6 to 36 V
Specifications Do Not Exceed Torque
13.5 N·m
Specifications Installation Hole Size
1.312 in | 33.32 mm
Specifications Insulator Flammability Rating
V0-V2 Underwriters' Laboratory (UL94)
Specifications Insulator Material
Polybutylene Terephthalate (PBT)
Specifications Rating
Extra Heavy Duty
Specifications Stud Terminal Material
Brass
Specifications Stud Terminal Size
0.57 in | 14.48 mm
Specifications Stud Terminal Thread Size
3/8-16 in
