CVP Plated Steel Case Battery Master Disconnect Switch

Name: CVP Plated Steel Case Battery Master Disconnect Switch
Brand: Marsh Electronics, Inc.
SKU: CVP-e5ce29
Price: 129.99 USD
Availability: OutOfStock

SKU:CVP-e5ce29

High current DPST switch with 2000A rating. Durable plated steel case for reliable performance. Ideal for institutional procurement.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

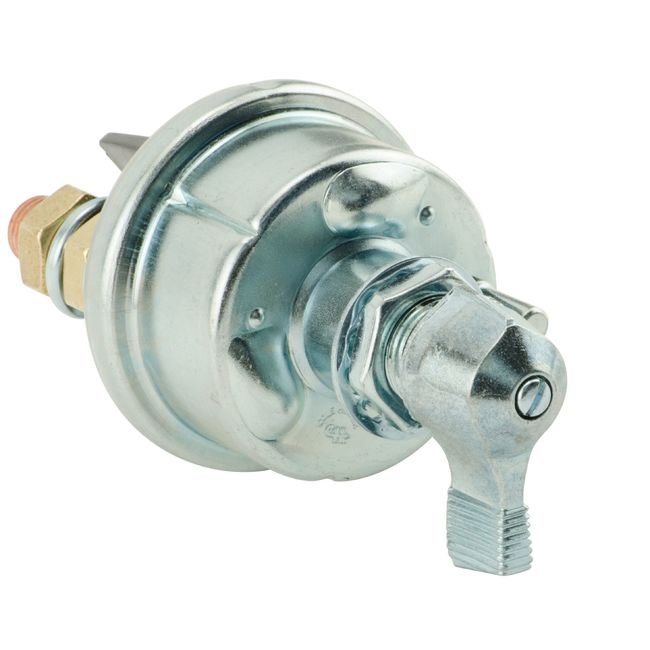

The CVP Plated Steel Case Battery Master Disconnect Switch is designed for high current applications, featuring a Double Pole Single Thrust design with a 2000A intermittent current rating. Constructed with durable plated steel and copper contacts, this switch ensures reliable performance in demanding environments. With a compact design and easy installation, it is suitable for a wide range of institutional and government procurement needs.

Product Specifications

Accessories Accessories

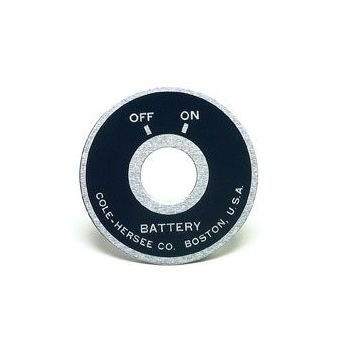

Item # - 82065Item Name - Faceplate for Master Disconnect SwitchesDescription - 82065 Faceplate without indexing hole for metal case battery disconnect switches without indexing pin. Polished aluminum with enamel finish 2-1/2 (63.5 mm) diameter. 82065-02 faceplate with indexing pin.

Specifications Case Material

Plated Steel

Specifications Contact Material

Copper

Specifications Continuous Current Rating

300 A

Specifications Current

2000 A

Specifications Direct Current Dc Voltage

6 to 36 V

Specifications Installation Hole Size

3/4 in

Specifications Intermittent Current Rating

2000 A

Specifications Mounting Stem Thread Size

3/4-16 in

Specifications Number Of Stud Terminals

Specifications Panel Thickness

1/4 in

Specifications Small Stud Continuous Current Rating

20 A

Specifications Stud Terminal Diameter

1/2-20 in

Specifications Stud Terminal Material

Copper

Specifications Type

Double Pole Single Thrust (DPST)
