Dependable 24V DC motor windshield wiper switch with dynamic parking & intermittent delay. SAE J1455 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

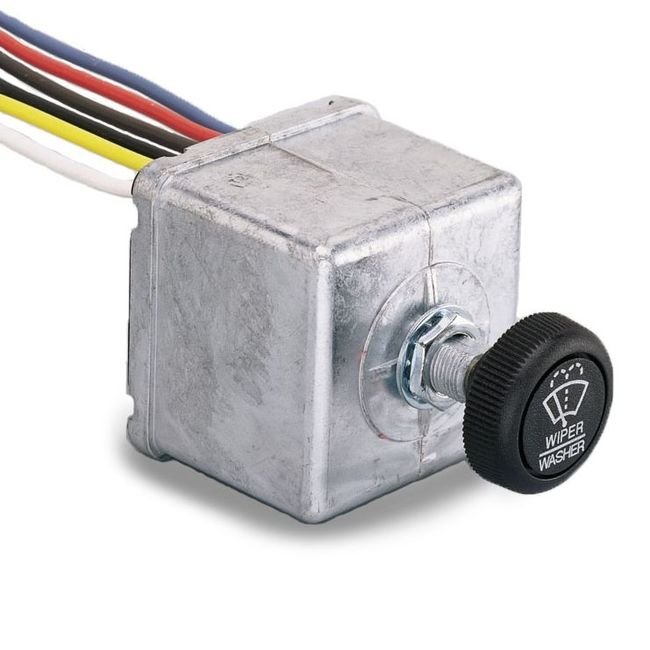

The CVP Rotary Switch for 24V DC systems offers precise control with dynamic parking and intermittent delay features, ideal for heavy-duty vehicle wiper systems. With 4 positions and color-coded wire leads, this switch ensures reliable functionality. The switch complies with SAE J1455 standards for ignition-proof construction.

Product Specifications

Additional Information Additional Information

Black plastic knob with metal insert and set screw with white SAE imprint. Die cast case 2-7/32 (56.4 mm) square 1-13/16 (46.0 mm) long. 7/16-28 thread mounting stem 0.45 (11.3 mm) long. Hex nut and lockwasher included. Switches conform to SAE J1455 4.11.

Specifications Case Length

1-13/16 in | 46.0 mm

Specifications Case Material

Die Cast Zinc

Specifications Case Shape

Square

Specifications Case Size

2-7/32 in | 56.4 mm

Specifications Color Coded Wire Leads

Specifications Continuous Current

15 A

Specifications Direct Current Dc Voltage

24 V

Specifications Ignition Proof

SAE J1455

Specifications Knob Material

Black Plastic

Specifications Mounting Stem Length

0.45 in | 11.3 mm

Specifications Mounting Stem Thread Size

7/16-28 in

Specifications Number Of Terminals

Specifications Terminal Type

Wire Leads

Specifications Wash Current

3 A

Specifications Wire Lead Length

5 in | 127.0 mm

Specifications Wire Lead Size

16 gauge
